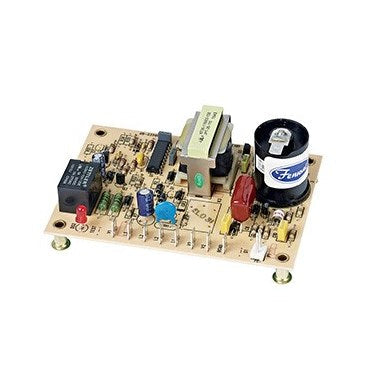

Fenwal 35-704600-005 Direct Spark Ignition Control 120v No Prepurge

Product Description

The Fenwal 35-704600-005 is a direct spark ignition control designed for reliable operation in HVAC systems. Ideal for controlling gas valves and igniting LP or natural gas. It operates at 120 volts and offers features like multiple ignition tries and an automatic one-hour reset.

• Designed for controlling gas valves and igniting LP or natural gas
• Microprocessor circuit design ensures precise operation
• Diagnostic LED and flame current test pins for troubleshooting

Product Highlights

This ignition control features multiple enclosure configurations to suit various industrial environments, including dust and object protection, and potted versions for washdown areas or extreme vibration conditions. Offers two wiring options and trial for ignition times ranging from four to fifteen seconds.

Technical Specifications

• Weight: 0.72 pounds
• Enclosure Options: Case, Open Board, Potted
• Wiring Options: 1/4 inch quick connects, multi-pin connector
• Ignition Trials: 1 and 3 tries
• Ignition Times: 4, 7, 10, 15 seconds customization available
• Flame Sense Options: Single spark and remote sense
• Temperature Range: -40°F to 175°F
