Product Description

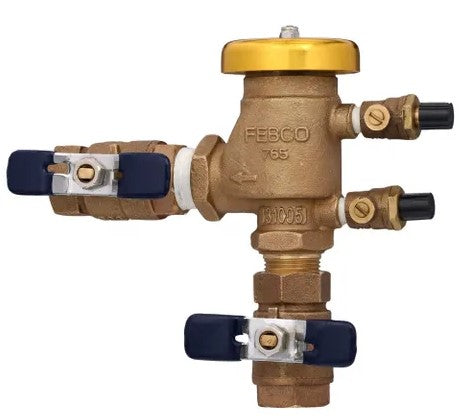

The Febco 765DBV is a 3/4 inches pressure vacuum breaker. This device protects against back siphonage of both toxic and non-toxic liquids. It features a bronze body and combines a check valve and an air opening port within a single assembly. This model can handle a maximum working pressure of 150 psi.
- Bronze construction for durability.
- Includes a check valve and air opening port in one unit.
- Designed for minimal head loss and ease of servicing.
Product Highlights
This pressure vacuum breaker is engineered for various applications, including industrial plants, cooling towers, and lawn sprinkler systems. The lightweight poppet seals the air opening under minimum flow, ensuring reliable operation. The plastic bonnet offers protection against freezing.
Product Information
Standard Information
-
Brand: Febco
-
Model Number: 765DBV
Technical Specifications
-
Materials: Bronze
-
Maximum Pressure: 150 psi
-
Temperature Range: 32 to 140 degrees F
-
End Connections: NPT ANSI/ASME B1.20
-
Weight: 3.645 lbs
-
Overall Dimensions: 8.9 inches x 7.5 inches x 3.5 inches
-
Shipping Dimensions: 9 inches x 8.95 inches x 8.95 inches
