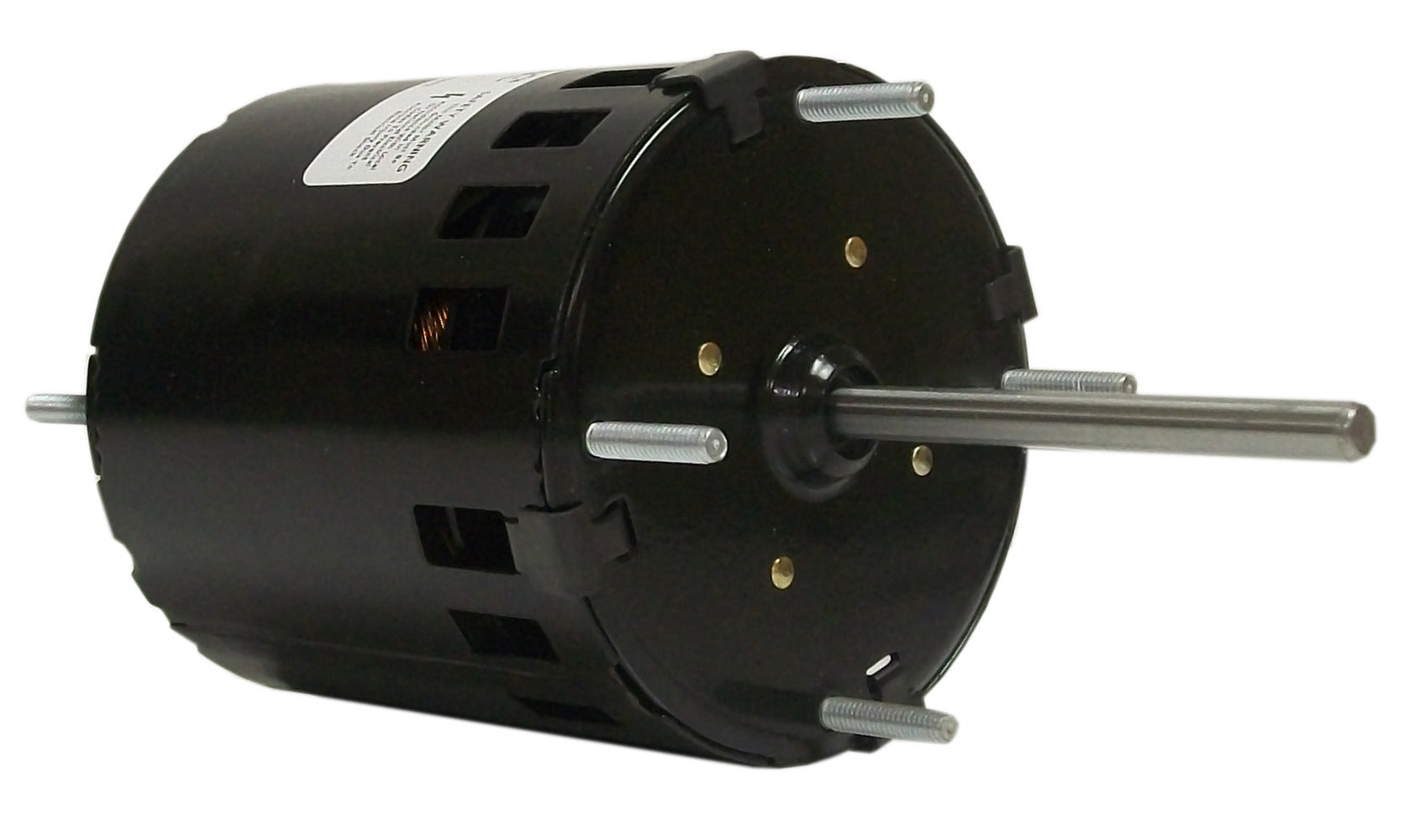

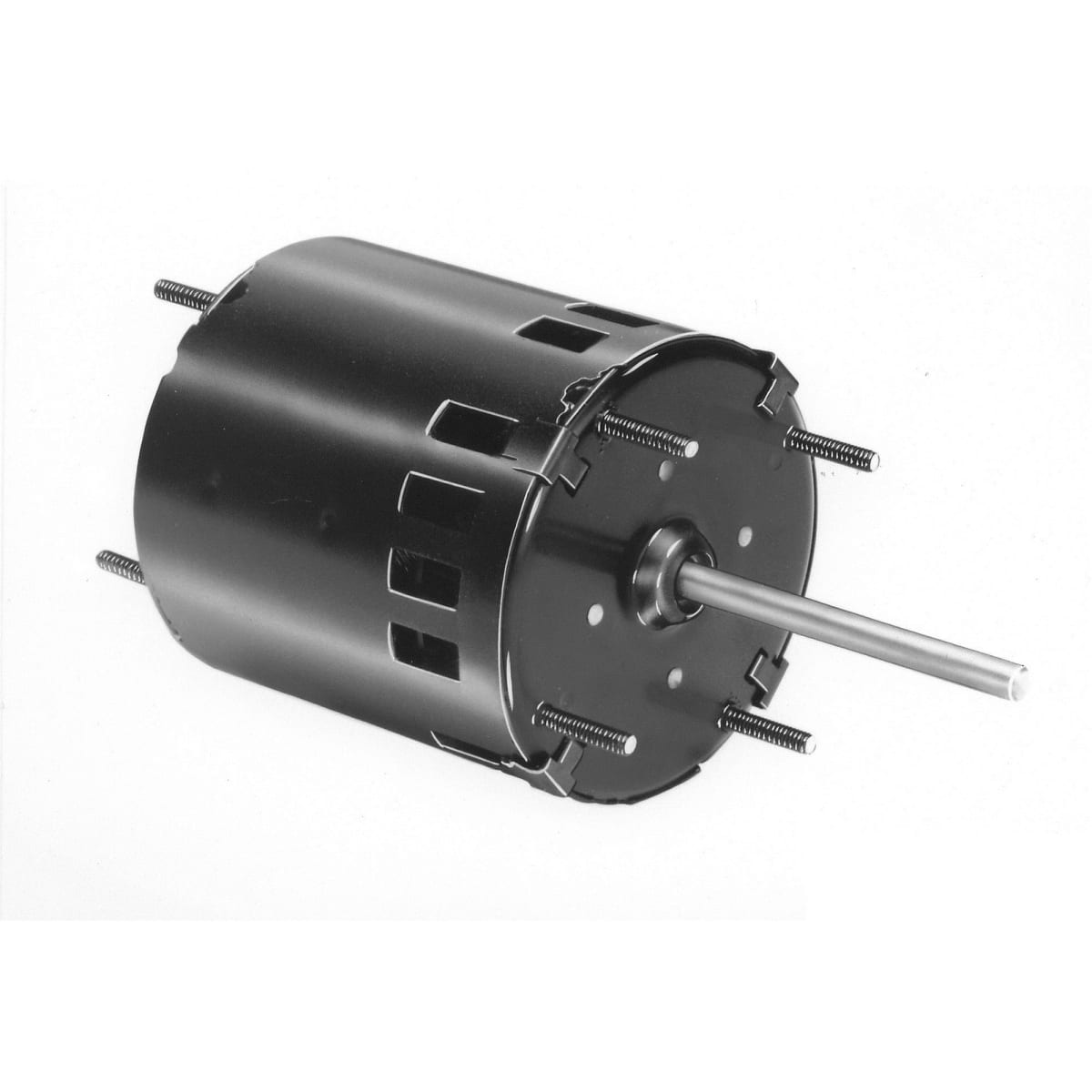

Fasco D208 3.3 Frame Open Ventilated Shaded Pole General Purpose Motor 3000rpm 115V 1/30 HP CW Rotation

Product Description

The Fasco D208 3.3 Frame Open Ventilated Shaded Pole General Purpose Motor with Sleeve Bearing is designed for a variety of general-purpose applications. Featuring a speed of 3000 RPM and a power rating of 1/30 HP, this motor offers reliable performance with 115V and 60Hz capabilities.

• 1/30 HP motor provides efficient operation
• 3000 RPM ensures optimal performance
• 115V with 1.1 amps for reliable power

Product Highlights

This motor is equipped with sleeve bearings, making it suitable for continuous duty. The clockwise shaft end (CWSE) rotation and the thermal overload protection ensure safe and effective operation. Its open ventilated design with extended studs mounting makes it versatile for many uses.

Product Information

Standard Information

• Brand: Fasco
• MPN: D208

Technical Specifications

• Speed: 3000 RPM
• Voltage: 115V
• Power: 1/30 HP
• Amperage: 1.1 amps
• Mounting: Extended Studs
• Bearing Type: Sleeve
• Rotation: CWSE
• Enclosure: Open Air Over
• Insulation Class: B
• Frequency: 60 Hz
• Motor Frame: 3.3 inches
• Material: Steel
• Ambient Temperature: 40°C
• Dimensions: 10.5 x 5.38 x 4.38 inches
