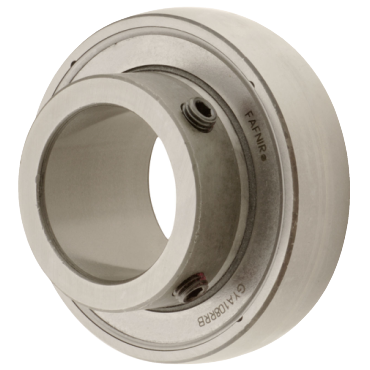

Fafnir GYA100RRB GYA-RRB Standard Series Wide Inner Ring Ball Bearing

Product Description

The Fafnir GYA100RRB is a GYA-RRB Standard Series Wide Inner Ring Ball Bearing. This ball bearing features a round bore design, suitable for standard cylindrical housings. The GYA-RRB series offers a spherical outer diameter, which allows for unrestricted alignment within corresponding spherical housing surfaces.

• Dimensionally interchangeable with YA-RR series
• Double sealed for enhanced protection
• Constructed with durable steel and a setscrew locking mechanism

Product Highlights

This product is ready to ship and typically ships within twenty-four hours, meeting the needs of trade professionals.

Product Information

Standard Information

• Brand: Fafnir
• Part Number: GYA100RRB

Technical Specifications

• Bore Type: Round Bore
• Duty: Standard-Duty
• Inch/Metric: Inch Bore
• Length Through Bore: 1.109 inches
• Lubrication: Relubricatable
• I.D.: 1.000 inches
• Material: Steel
• Seal Type: Contact Seals
• Outer Ring Width: 15 mm
• Static Load Rating [Max]: 1730 lbf
• Dynamic Load Rating: 3550 lbf
• Enclosure: Double Sealed
• Locking Device: Setscrew Locking Collar
• O.D.: 52 mm
• Bearing Type: Ball Bearing
• Rolling Element: Ball Bearing
• Overall Width: 1.109 inches
• Seal Material: Rubber
• Outer Ring Size: 205
• Weight: 0.356 LB
• EAN or UPC: 87796053243
