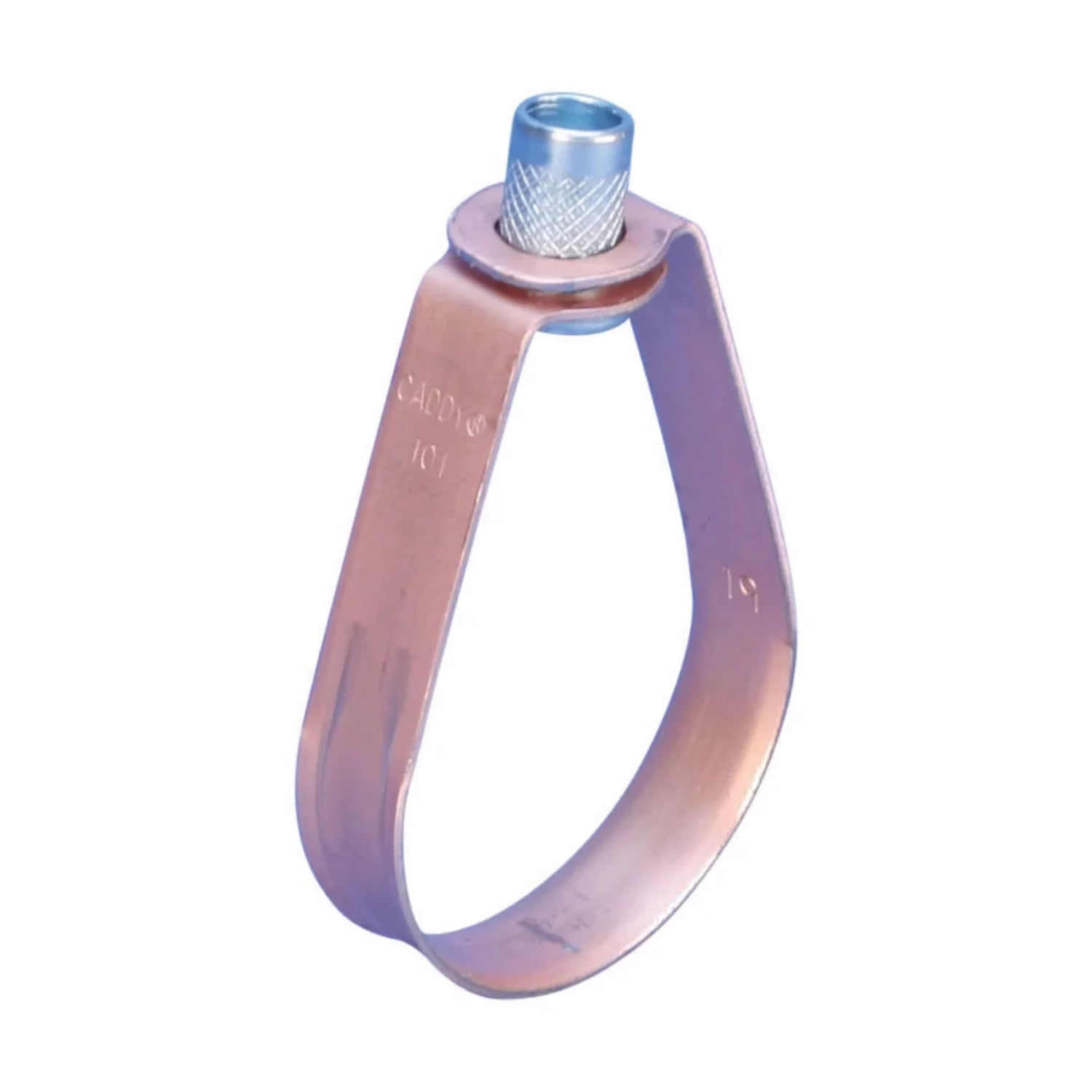

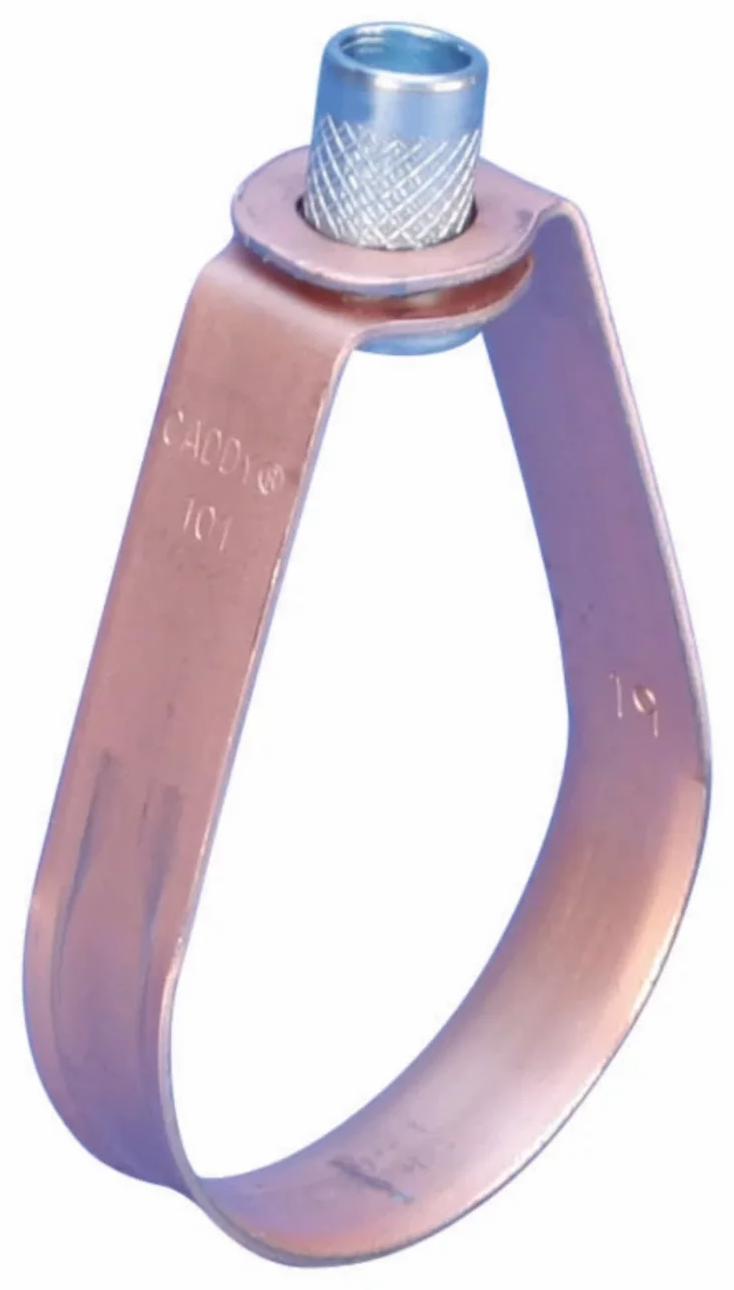

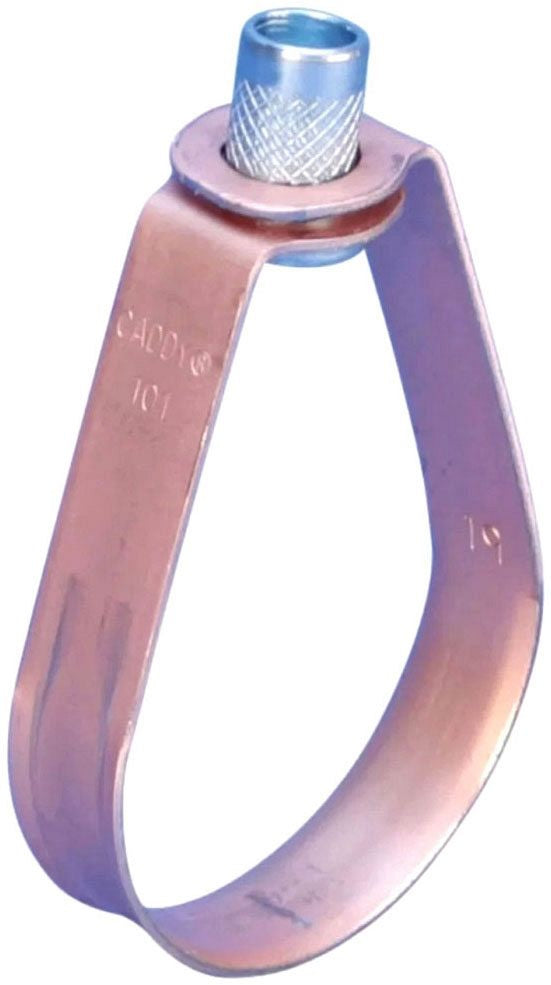

ERICO 1010125CP Loop Hanger for Copper Tube

Product Description

The ERICO 1010125CP Loop Hanger is built for supporting stationary, non-insulated copper tube lines. Made from steel and finished with copper electroplating, this hanger provides strength and durability. It is sized for a one and one quarter inch pipe with an outer diameter of one and three eighths inches. The hanger is compatible with a three eighths inch rod for easy mounting.

• Supports stationary non-insulated copper tube lines
• Steel construction with copper electroplated finish
• Conforms to WW-H-171 Type 10 and MSS SP-58 Type 10 standards

Product Highlights

This loop hanger is ideal for HVAC and plumbing installations where copper tubing needs secure suspension without insulation.

Product Information

Standard Information

• Material: Steel
• Finish: Copper Electroplated

Technical Specifications

• Pipe Size: 1 1/4 Inch
• Outer Diameter: 1 3/8 Inch
• Rod Size: 3/8 Inch
• Height: 3 3/16 Inches
• Static Load: 180 lbf
• UPC: 782856360773
• Standard Packaging Quantity: 100
• Load Rating: 180 Pounds (Static)
