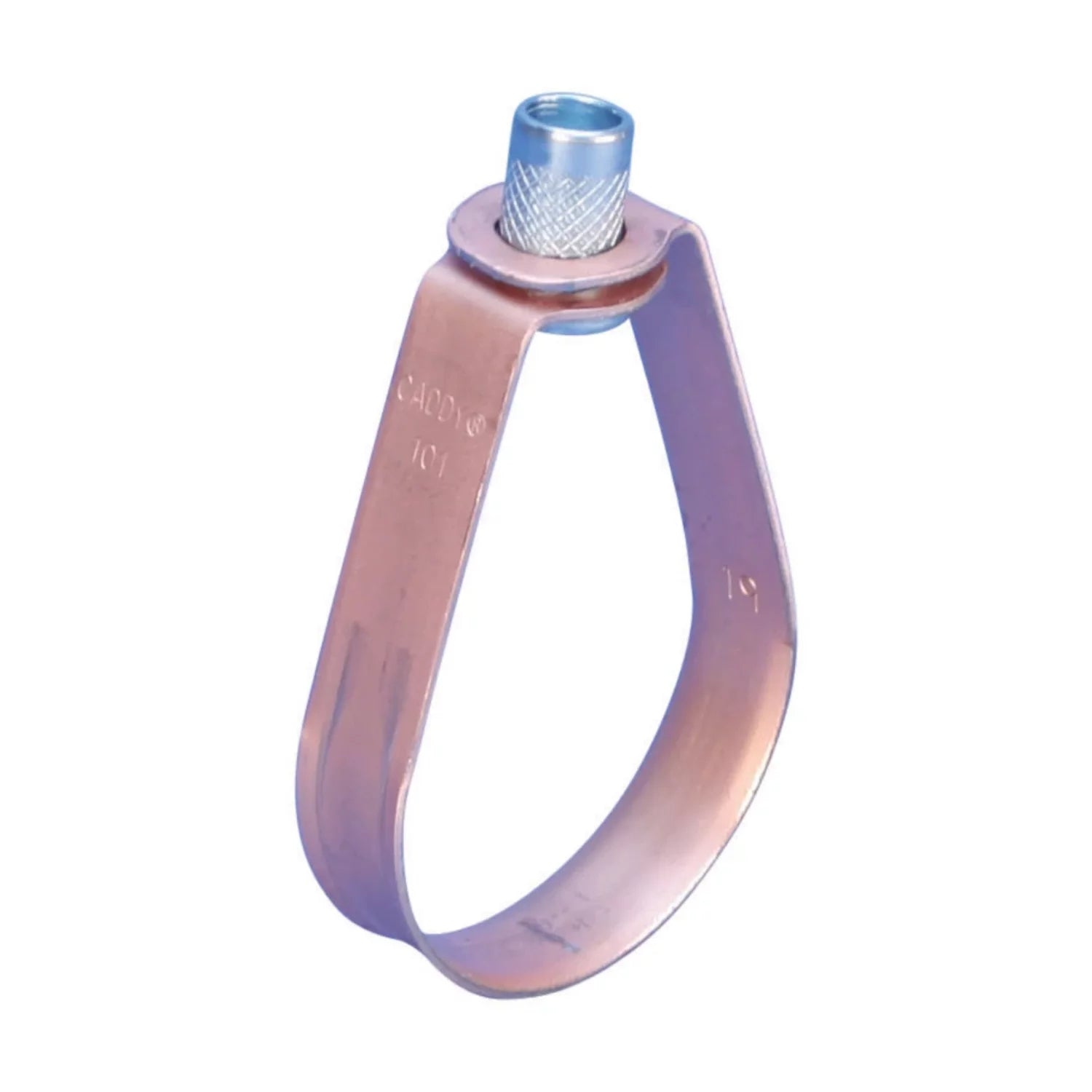

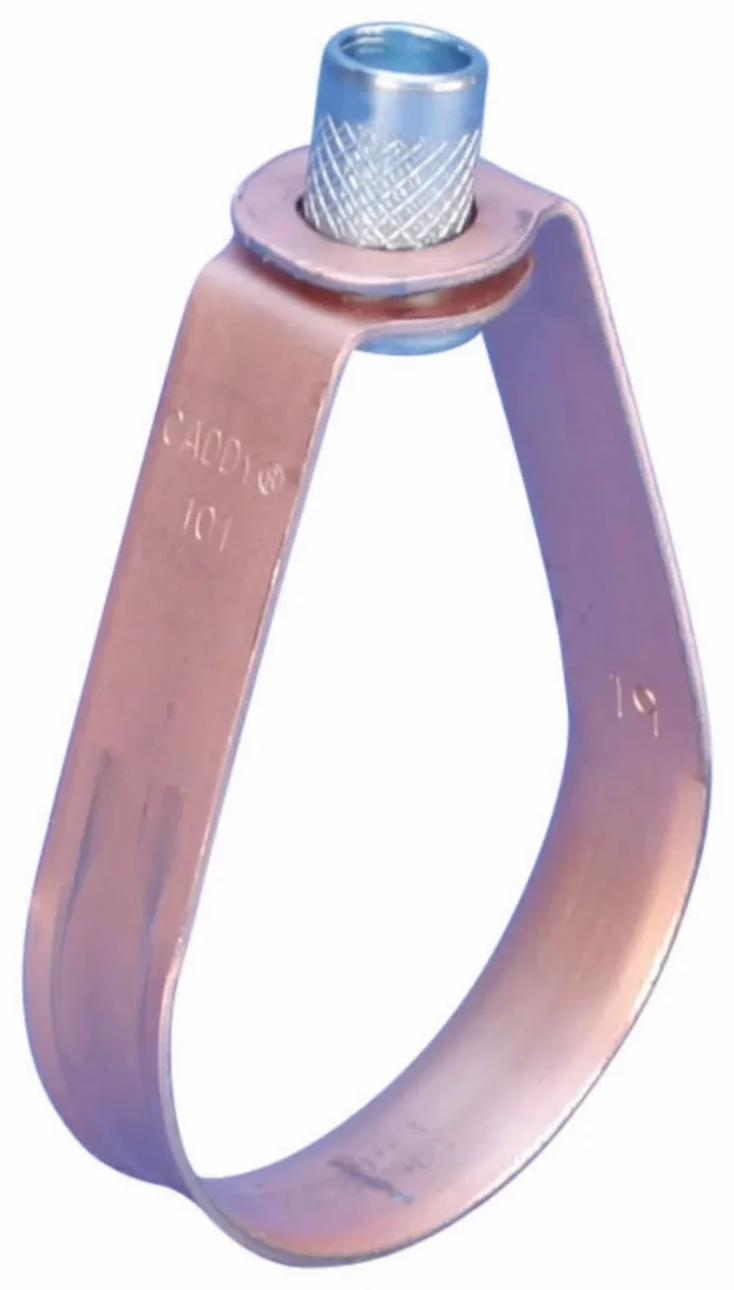

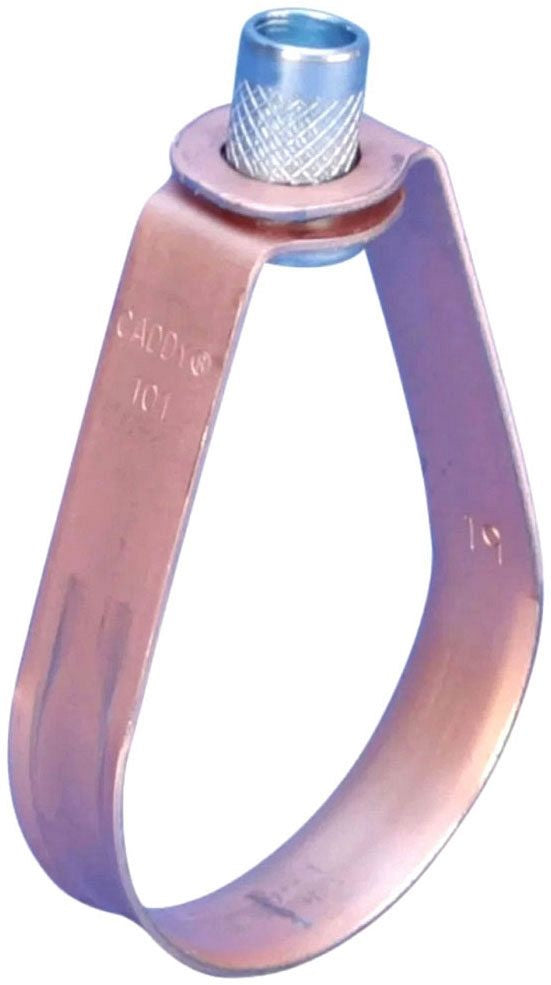

ERICO 1010100CP Loop Hanger for Copper Tube

Product Description

The ERICO 1010100CP is a loop hanger made for suspending stationary, non-insulated copper tube lines. This hanger is constructed from steel and has a copper electroplated finish. It is built to accommodate a one-inch pipe size and has an outer diameter of one and one-eighth inches. It features a rod size of three-eighths inches for mounting and conforms to Federal Specification WW-H-171 (Type 10) and Manufacturers Standardization Society (MSS) SP-58 (Type 10).

• Designed for suspension of stationary non-insulated copper tube lines.
• Constructed from steel with a copper electroplated finish.
• Meets Federal and MSS standards.

Product Highlights

This loop hanger is ideal for securely suspending copper tubes in various settings.

Product Information

Standard Information

• Material: Steel
• Finish: Copper Electroplated

Technical Specifications

• Pipe Size: 1
• Outer Diameter: 1 1/8
• Rod Size: 3/8
• Height: 3 1/8
• Static Load: 180 lbf
• Applicable Standard: WW-H-171 Type 10, MSS-SP-58 Type 10
• Minimum Pipe Size: 1 Inch
• Maximum Pipe Size: 1 Inch
