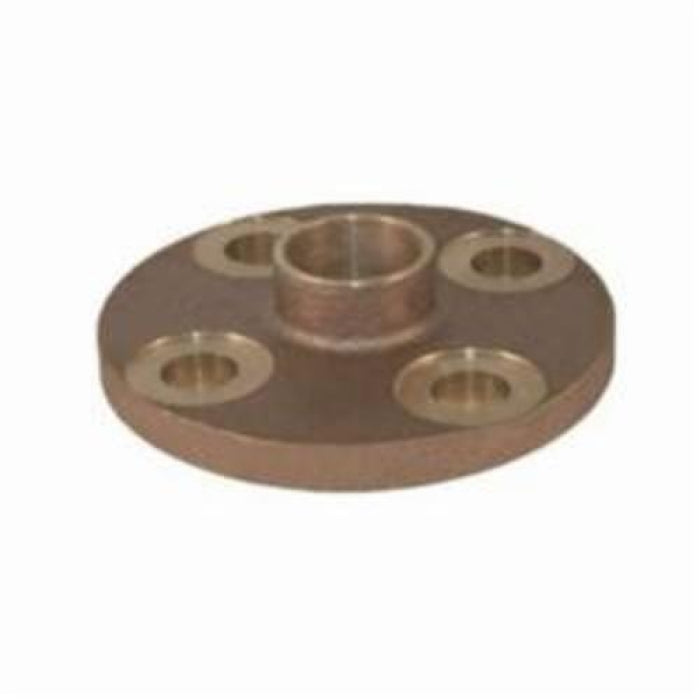

Product Description
EPC 10056646 is a solder companion flange designed for connection in plumbing systems. It features a nominal size of one and a half inches and is made from cast brass. The flange provides a C x C connection and operates at a pressure class of 150 lb.
- Nominal size: One and a half inches
- Material: Cast Brass
- Thickness: Zero point four four inches
Product Highlights
This solder flange is robust and suitable for various piping applications. It is ideal for connecting pipes in plumbing and HVAC systems.
Product Information
Standard Information
-
Brand: EPC
-
Manufacturer: Elkhart Products Company

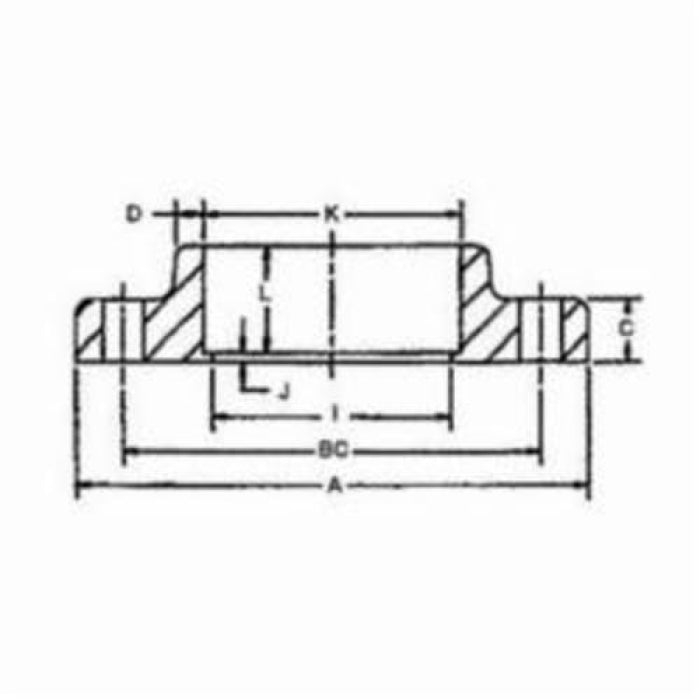

Technical Specifications
-
Nominal Size: One and a half inches
-
Inside Diameter: One point six two eight to one point six three three inches
-
Outside Diameter: Five inches
-
Thickness: Zero point four four inches
-
Bolt Circle Diameter: Three point eight eight inches
-
Number of Bolt Holes: Four
-
Bolt Hole Size: Zero point six two inches
-
Pressure Class: One hundred fifty lb
-
Series: 4741
-
Connection Type: C x C
-
Domestic/Import: Domestic
