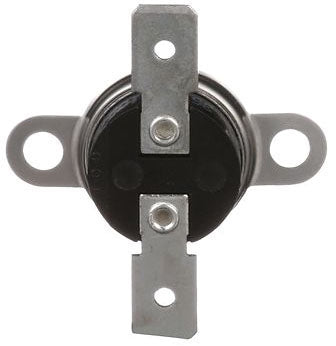

White-Rodgers 3L01-190 Snap Disc Thermostat Open-On-Rise 120/240/277 VAC

Product Description

The White-Rodgers 3L01-190 Snap Disc Thermostat is engineered for robust and reliable temperature control within HVAC systems. It features an open-on-rise switch action with automatic temperature settings and reset capabilities, making it a vital component for regulating HVAC operation.

• Open-on-rise with automatic reset for seamless operation.
• Compatible with 120/240/277 Volt AC systems for versatile use.
• Durable construction suitable for harsh HVAC environments.

Product Highlights

This White-Rodgers snap disc thermostat offers a fixed temperature setting with a cut-in at 150 degrees Fahrenheit and a cut-out at 190 degrees Fahrenheit. It includes a 1/4 inch quick connect terminals and is equipped with a stainless steel mounting bracket.



Technical Specifications

• Series: 3L
• Voltage Rating: 120/240/277 VAC
• Current Rating: 25 Amp at 120/240 VAC, 21.6 Amp at 277 VAC
• Power Rating: 125 Volt Amp
• Switch Type: Open-On-Rise
• Temperature Setting: 150°F Cut-In, 190°F Cut-Out
