Elkhart Products 10033030 COF212T 2-1/2 CXCXC W TEE

Product Description

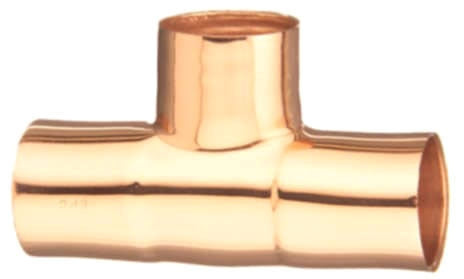

The Elkhart Products 10033030 is a tee fitting with a nominal size of two and a half inches. This product features female soldered connections on all ends and is made from durable copper. It is ideal for both industrial and residential applications, meeting the ASME/ANSI B16.22 and MSS-SP-104 standards.

• Tee fitting with female soldered connections
• Maximum pressure rating of three hundred thirty-five PSI
• Temperature rating up to four hundred degrees Fahrenheit

Product Highlights

This fitting is suitable for seamless copper tubing and is essential for plumbing and piping projects.

Product Information

Standard Information

• Brand: Elkhart Products
• MPN: 10033030

Technical Specifications

• Nominal Size: 2-1/2 Inch
• Thickness: 0.067 Inch
• Material: Copper
• End Connection: Female Soldered x Female Soldered x Female Soldered
• Process: Wrot
• Pressure Rating: 335 PSI at -20 to 100 Deg F
• Temperature Rating: 400 Deg F
• Application: Industrial, Residential
• Applicable Standard: ASME/ANSI B16.22, MSS-SP-104
