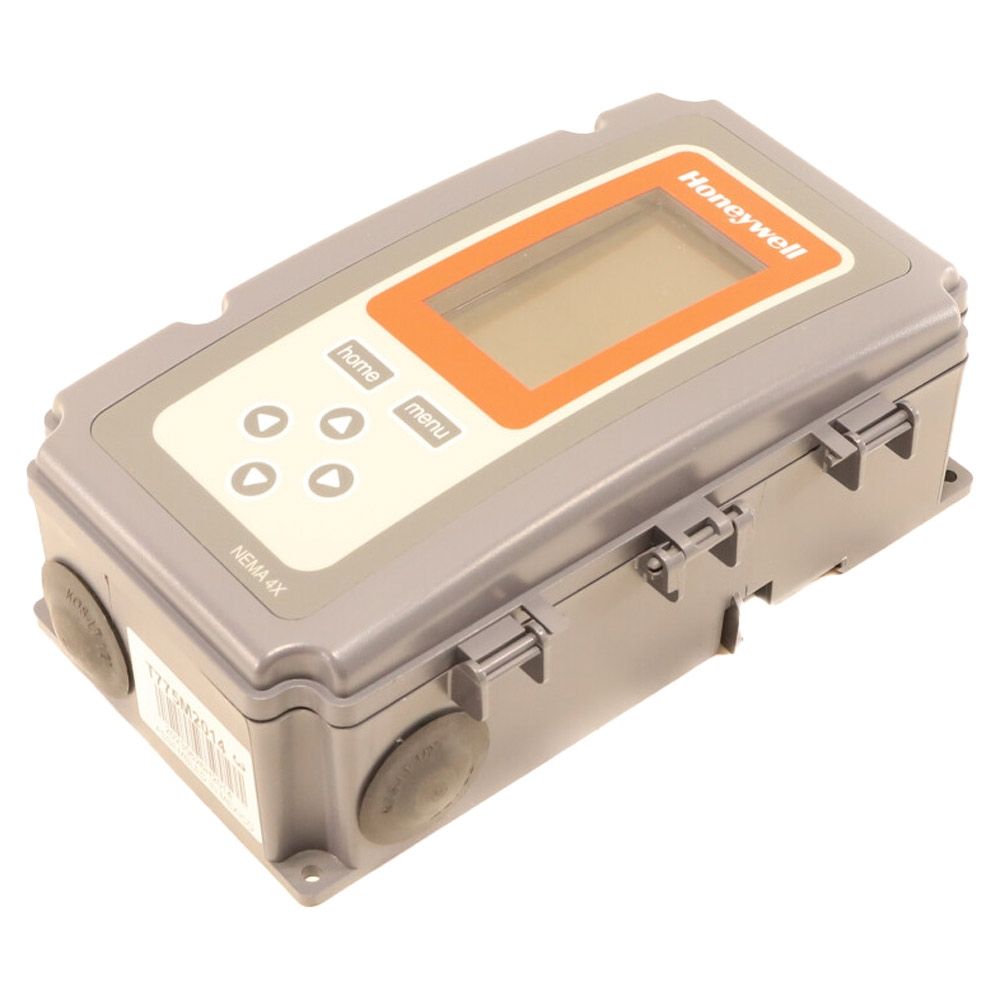

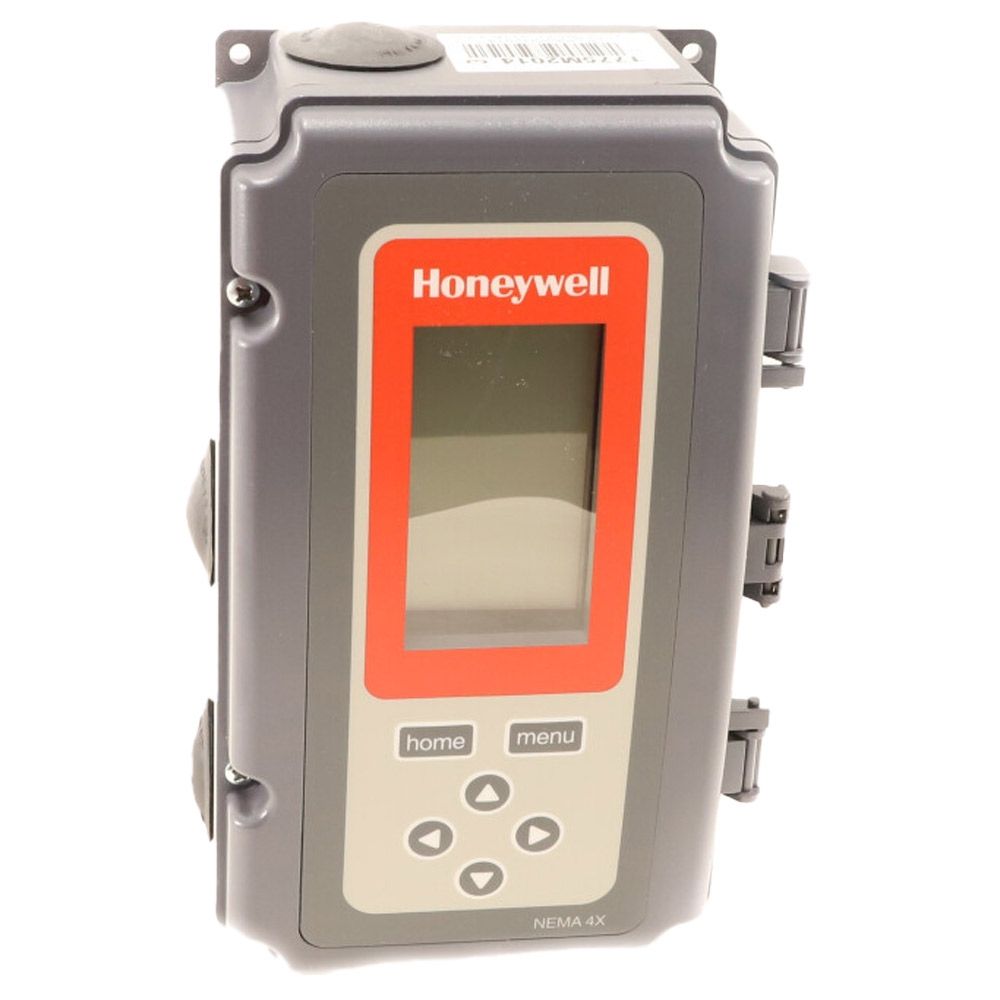

Honeywell T775M2014 Modulating Electronic Temperature Controller 2 Temp Inputs 4 SPDT Relays 2 Analog Outputs 1 Sensor NEMA 4X

Product Description

The Honeywell T775M2014 Modulating Electronic Temperature Controller is designed for precise temperature management in industrial settings. This versatile controller offers robust performance and adaptable functionality for various temperature control applications.

• Modulating control for enhanced accuracy
• Includes one sensor
• NEMA 4X enclosure for durability

Product Highlights

The Honeywell T775M2014 excels in providing exact temperature control through its modulating capability and supports multiple input and output options. It includes a sensor, making it ready for immediate use, and comes in a NEMA 4X enclosure to withstand challenging environments.

Product Information

Standard Information

• Brand: Honeywell
• MPN: T775M2014

Technical Specifications

• Power Supply: 120/240 VAC
• Input Range: -40 to 248 degrees Fahrenheit
• Output Range: 0-10 VDC
• Relay Rating: 10 A at 24 VAC/DC
• Relay Outputs: 4 SPDT
• Analog Outputs: 2
• Sensor Inputs: 2
• Dimensions: 8.16 inches high x 4.4 inches wide x 2.91 inches deep
• Weight: 2.6 pounds
