ECM Industries TA-500 ILSCO AL MEC 500-4 13/32 T UL CSA

Product Description

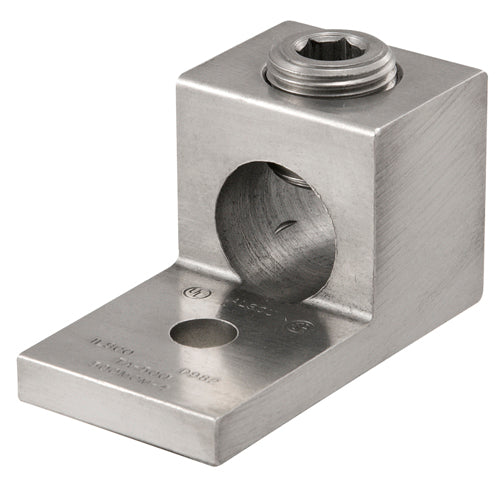

The ECM Industries TA-500 is a mechanical terminal lug designed for dual-rated applications. It handles conductor sizes from four AWG to 500 kcmil and is suitable for both aluminum and copper conductors. This terminal lug features a three-eighths inch stud and one bolt hole, making it a reliable connection point in various electrical systems.

• Manufactured from high-strength 6061-T6 aluminum alloy
• Chamfered wire entry for easy installation
• Low contact resistance for improved reliability

Product Highlights

This terminal lug is ideal for use in terminating connector applications, ensuring secure connections.

Product Information

Standard Information

• Brand: ECM Industries
• MPN: TA-500

Technical Specifications

• Application: Terminating Connector Applications
• Conductor Size: 4 AWG to 500 kcmil
• Conductor Type: Aluminum/Copper
• Dimensions: 2.8125 inches L x 1.5 inches W x 1.562 inches H
• Finish: Electro-Plated Tin
• Material: 6061-T6 Aluminum Alloy
• Number of Bolt Holes: 1
• Stud Size: 3/8 inches
• Temperature Rating: 90 degrees Celsius
• Voltage Rating: 2000 VAC
• Tongue Size: 1.594 inches L x 1.5 inches W x 0.312 inches THK
• Tongue Type: Straight
• Series: TA Series
• Specifications: 1/2 inches Hex
• Standards/Approvals: CSA File No. LR-29601, UL 453G, UL 486A-B File No. E6207, ECCN EAR99
