Product Description

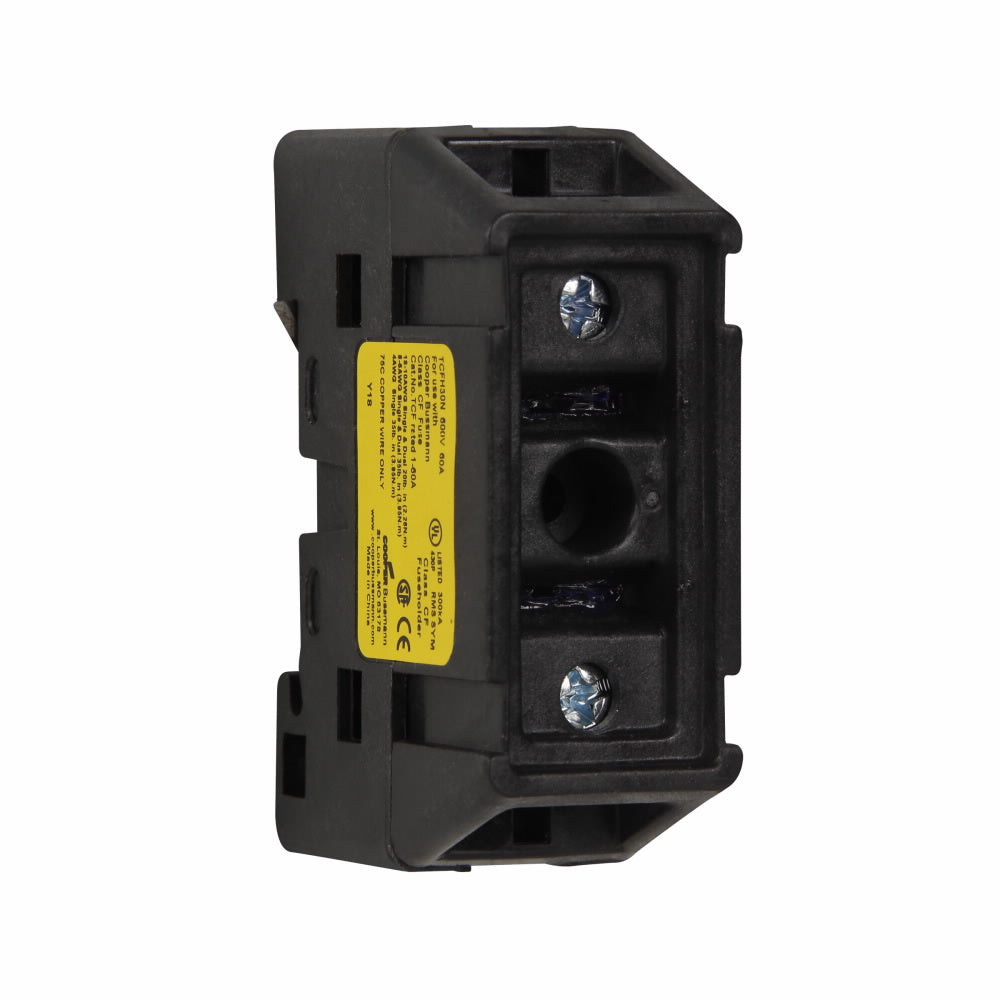

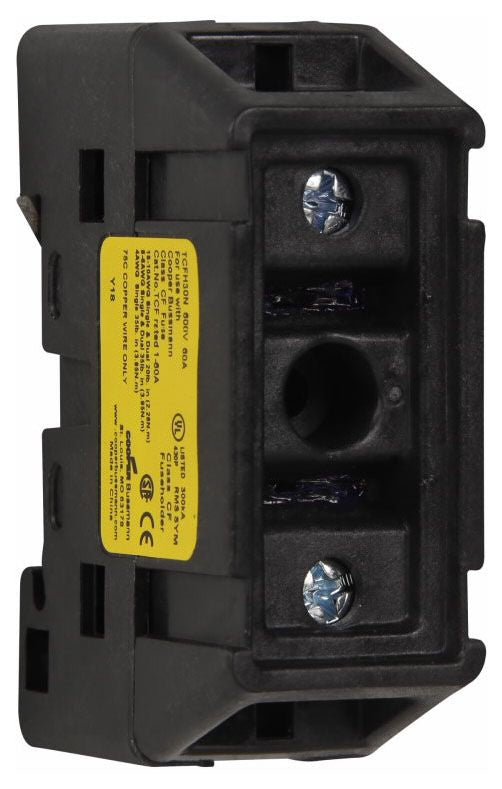

The Eaton TCFH30N BUS Fuseholder is a modular, finger-safe solution designed for use with cube fuses. It operates at 600 VAC and 300 VDC, with a current rating of thirty amps. Applications include electrical panel boards and industrial control systems.
- Finger safe construction for added protection
- Compatible with CUBE Fuse™ CF and J and Low-Peak™ Fuse
- Suitable for chassis or DIN rail mounting
Product Highlights
This fuseholder promotes safety and efficiency in electrical installations.
Product Information
Standard Information
-
Manufacturer: Eaton
-
UPC: 05171222348
Technical Specifications
-
Series: TCFH
-
Amperage Rating: 30 A
-
Voltage Rating: 600 VAC/300 VDC
-
Temperature Rating: -40 to 176 deg F
-
Connection Type: Pressure Plate
-
Wiring Gauge: 18 to 8 AWG
-
Dimensions: 2.3 in L x 0.76 in W x 1.357 in H
-
Material: Glass Filled Polyethersulfone
-
Number of Poles: 1
-
Mounting Type: Chassis/DIN Rail
-
Standards/Approvals: CE Certified, cULus Listed
