Product Description

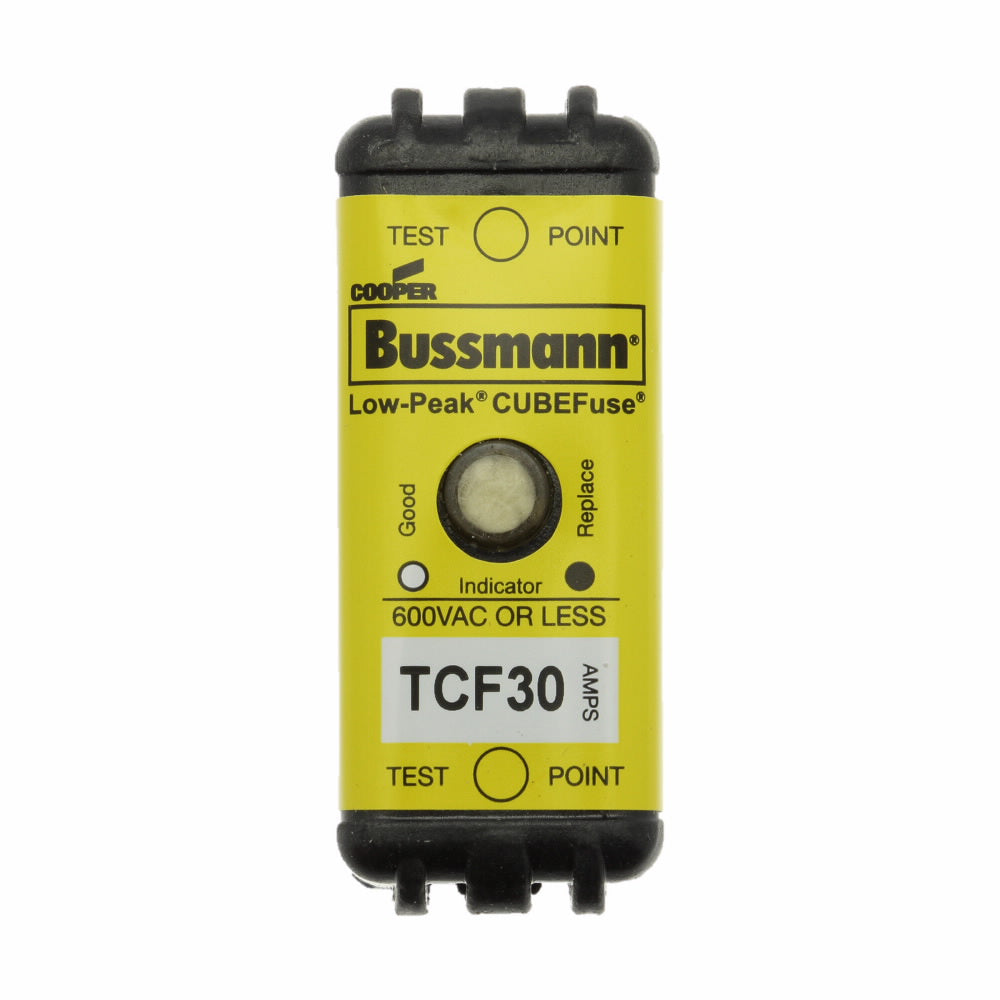

The Eaton TCF30 is a Bussmann CUBEFuse® that operates as a time delay fuse, offering indicating non-rejection features. This fuse has a rating of thirty amps, ideal for applications requiring high interrupt ratings. It supports up to six hundred volts alternating current and three hundred volts direct current. The fuse is designed for use in electrical panelboards, industrial controls, and machinery disconnects.
- Indicating non-rejection time delay fuse
- Temperature range from minus forty to eighty degrees Celsius
- Chassis and DIN rail mount options
Product Highlights
The TCF30 provides a compact footprint and is suitable for environments needing reliable fuse protection while maintaining space efficiency.
Product Information
Standard Information
-
Manufacturer: Eaton
-
UPC: 05171261503
Technical Specifications
-
Amperage Rating: 30 A
-
Voltage Rating: 600 VAC/300 VDC
-
Body Size: 1.88 inches L x 0.75 inches W x 1 inch H
-
Body Type: Square Blade
-
Class: CF
-
Element: Dual
-
Response Time: 10 seconds
-
Mounting Type: Chassis/DIN Rail
-
Standards: CE Certified, UL Guide JFHR, UL File No. E4273, CSA Class 1422-02, File No. 53787
