Product Description

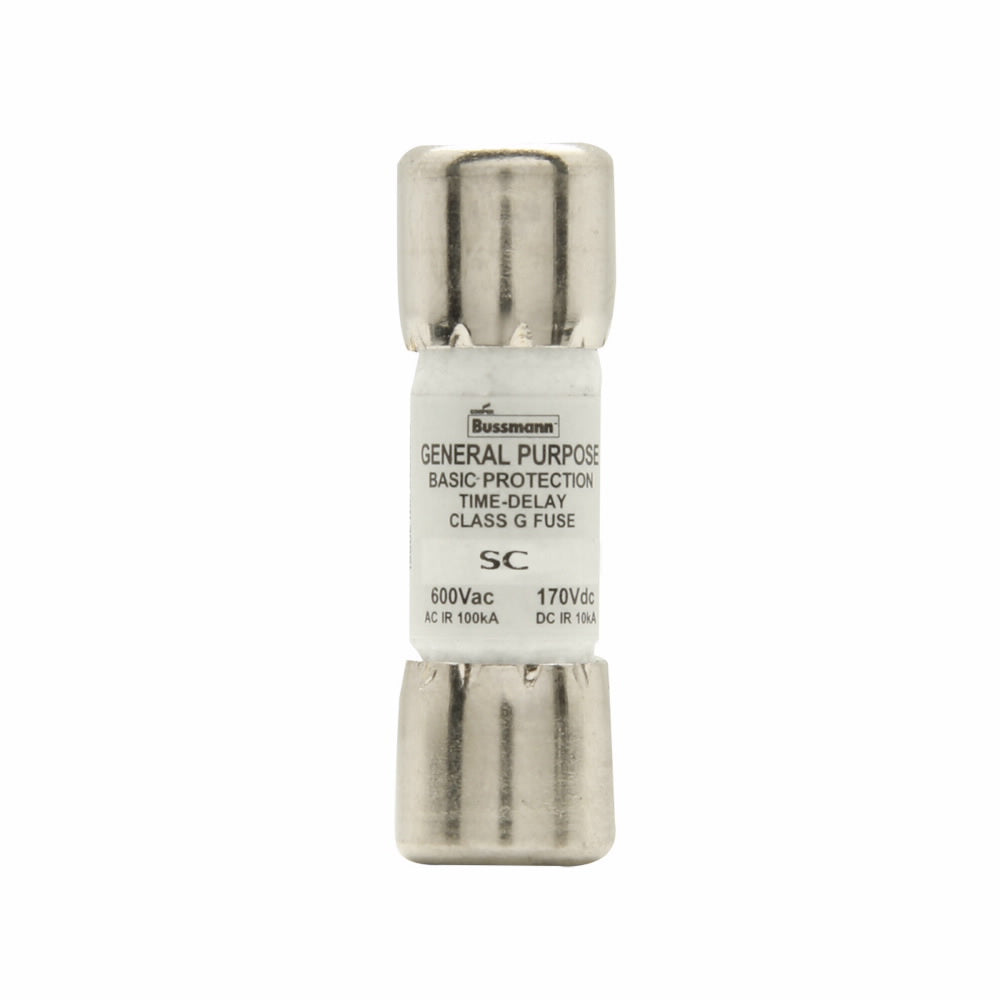

The Eaton SC-3 is a Bussmann current limiting fast acting time delay fuse designed for reliable circuit protection. This general purpose fuse operates at three amps and handles up to 600 volts AC and 170 volts DC.
- Current limiting feature prevents damage due to overcurrents.
- Size rejection design helps avoid overfusing.
- Fast acting with a response time of twelve seconds.
Product Highlights
This fuse is ideal for HVAC branch circuit protection and fusible branch panelboards. It is compliant with UL 248-5 and CSA standards.
Product Information
Standard Information
-
Manufacturer: Eaton
-
UPC: 05171225003
Technical Specifications
-
Amperage Rating: 3 A
-
Voltage Rating: 600 VAC, 170 VDC
-
Body Size: 0.41 inches Diameter x 1.31 inches Length
-
Class: G
-
Interrupt Rating: 100 kA at 600 VAC, 10 kA at 170 VDC
-
Response Time: 12 seconds
-
Mounting Type: Holder
-
Terminal Type: Ferrule
-
Standards/Approvals: UL 248-5, CSA C22.2, CE Certified
