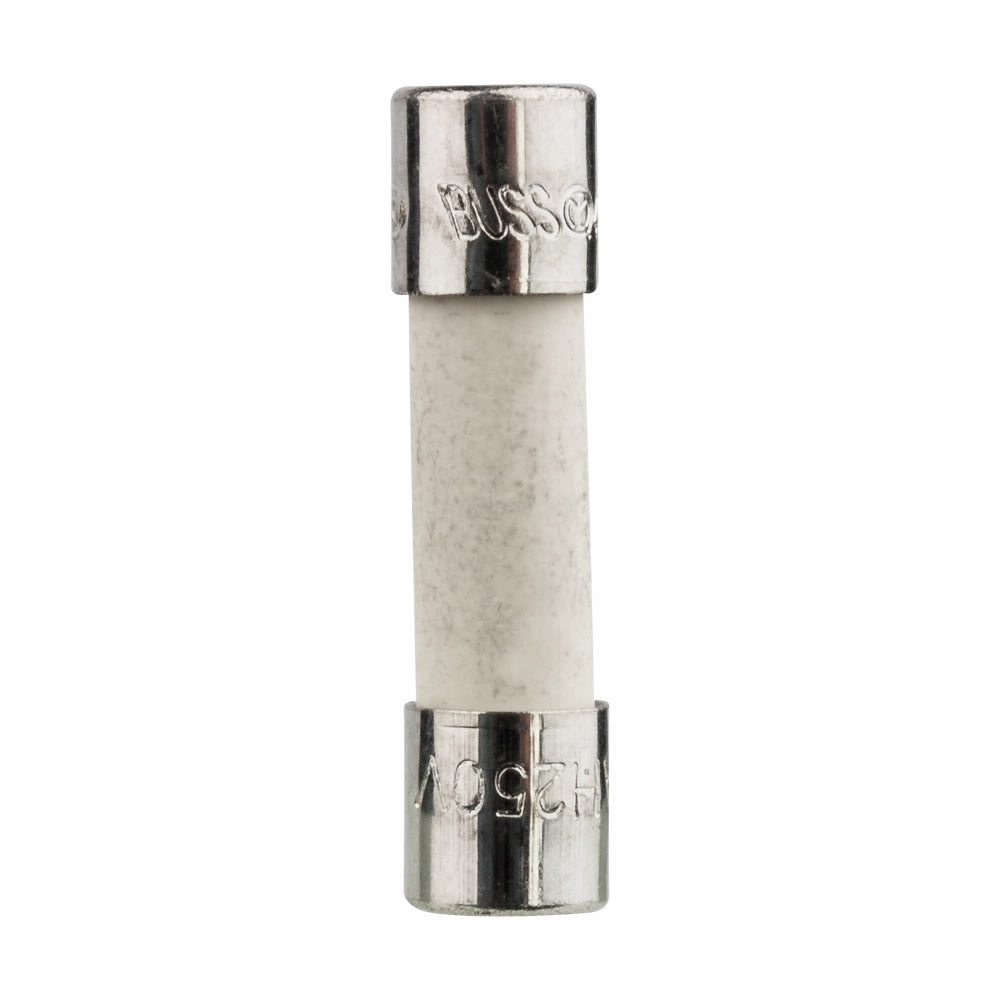

Product Description
The Eaton S501-10-R BUS S501 10A Fuse is designed for electronic circuit protection. This fast-acting fuse operates at ten amps and supports a voltage of two hundred fifty volts alternating current. The fuse features a non-indicating, non-rejection design that makes it suitable for various applications in electronic circuitry.
- Fast acting for maximum protection
- High break capacity for use in higher fault energy electronic circuitry
- Ceramic tube with silver plated endcaps
Product Highlights
The fuse has a cylindrical body and is made of ceramic material, offering durability and reliability in electronic applications.
Product Information
Standard Information
-
Manufacturer: Eaton
-
UPC: 05171264898
Technical Specifications
-
Amperage Rating: 10 A
-
Application: Electronic Circuit Applications
-
Body Size: 5.2 mm Diameter x 20 mm Length
-
Body Type: Cylindrical
-
Element: Single
-
Frequency Rating: 50 Hz
-
Indicating: Non-Indicating
-
Material: Ceramic
-
Mounting Type: Holder
-
Rejection: Non-Rejection
-
Series: S501
-
Standards/Approvals: RoHS Compliant, cULus E140597 Listed, IMQ File No. EB405, VDE File No. 40015517, BSI File No. KM55676, SEMKO File No. 413779, cURus File E19180, Guide JDYX2, JDYX8, CSA File No. 53787, IEC 60127-2
-
Terminal Type: Ferrule
-
Type: Electronic
-
Voltage Rating: 250 VAC
