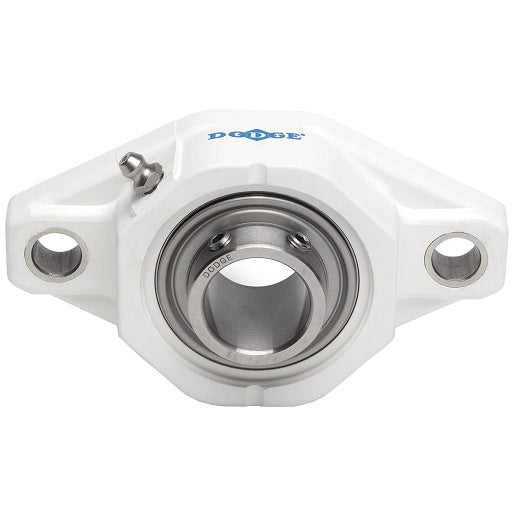

Dodge F2B-SCEZ-106-P Polymer Greasable 2-Bolt Flange Unit

Product Description

The Dodge F2B-SCEZ-106-P is a polymer greasable 2-bolt flange unit. This unit is designed to provide secure mounting and efficient operation in various applications. It features a shaft diameter of one point three seven five inches.

• Constructed with solid housing
• Compatible with Unirex N2 grease
• Supports a static load capacity of three thousand four hundred sixty-one pounds

Product Highlights

This flange unit is suitable for washdown environments and includes a setscrew locking device for secure installation.

Product Information

Standard Information

• Brand: Dodge
• MPN: F2B-SCEZ-106-P

Technical Specifications

• Sensor Ready: Adapter Required
• Grease Name: Unirex N2
• Housing Construction: Solid
• Ball Bearing Series: 207 Series
• Static Load Capacity: 3461 lbf
• Greasable: Yes
• Expansion Capability: Fixed
• Locking Device: Setscrew
• Bolt Diameter: 0.5 in
• Shaft Dia.: 1.375 in
• Dynamic Load Capacity: 5759 lbf
• Weight: 1.5 LB
• EAN or UPC: 782475626472
