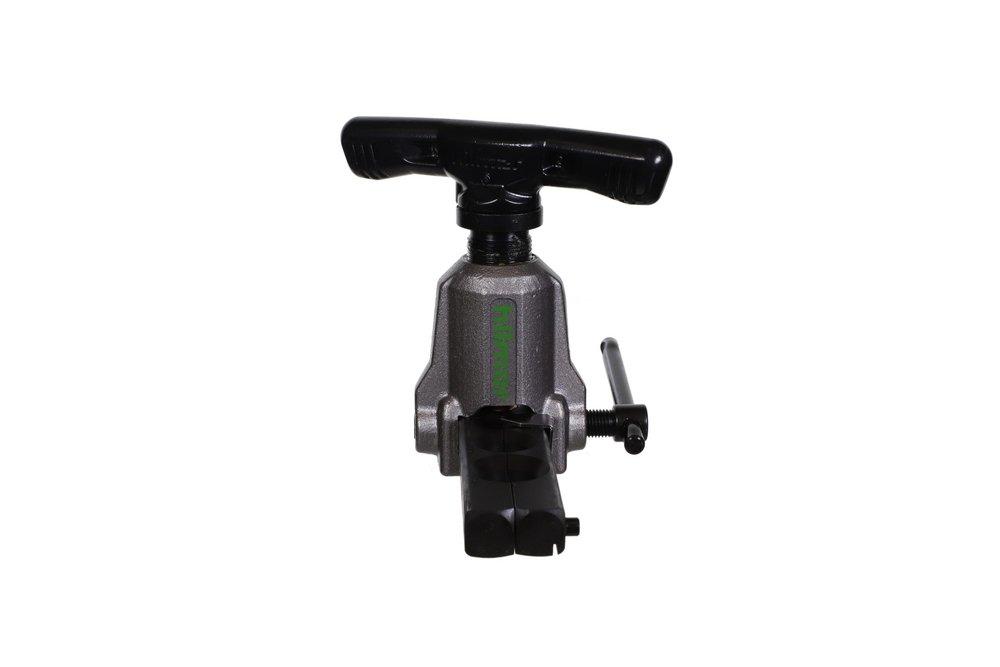

DiversiTech 1838952 Orbital Flare 3/16 - 3/4 in. Flaring Tool

Product Description

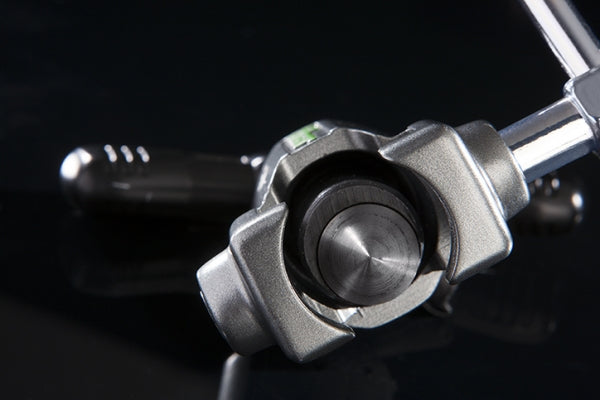

The DiversiTech Orbital Flaring Tool, model number 1838952, is designed for creating quality flares in various tube sizes. This tool features a unique off-center mounted cone that spins to shape the tube uniformly. It includes a spring-loaded block to hold the tube securely, a tube-stop arrow for precise height adjustments, and ball detents that align the flaring yoke easily. Additionally, a clutch mechanism prevents over-flaring, protecting the tube from damage.

• Designed for tube sizes from three-sixteenths to three-fourths inches.
• Equipped with a spring-loaded block for tube grip.
• Clutch mechanism prevents over-flaring.

Product Highlights

This tool is effective for HVAC systems and other tubing applications, ensuring professional results with every flare.

Product Information

Standard Information

• Brand: DiversiTech
• MPN: 1838952

Technical Specifications

• Tube Sizes (O.D.): 3/16, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4 inches
• Flare Type: 45 degrees
• Dimensions: Length eight point five inches, Width four point six inches, Height five point three inches
• Weight: 3.75 lbs.
• Materials Supported: Soft Copper, Steel, Aluminum, Brass
