Product Description

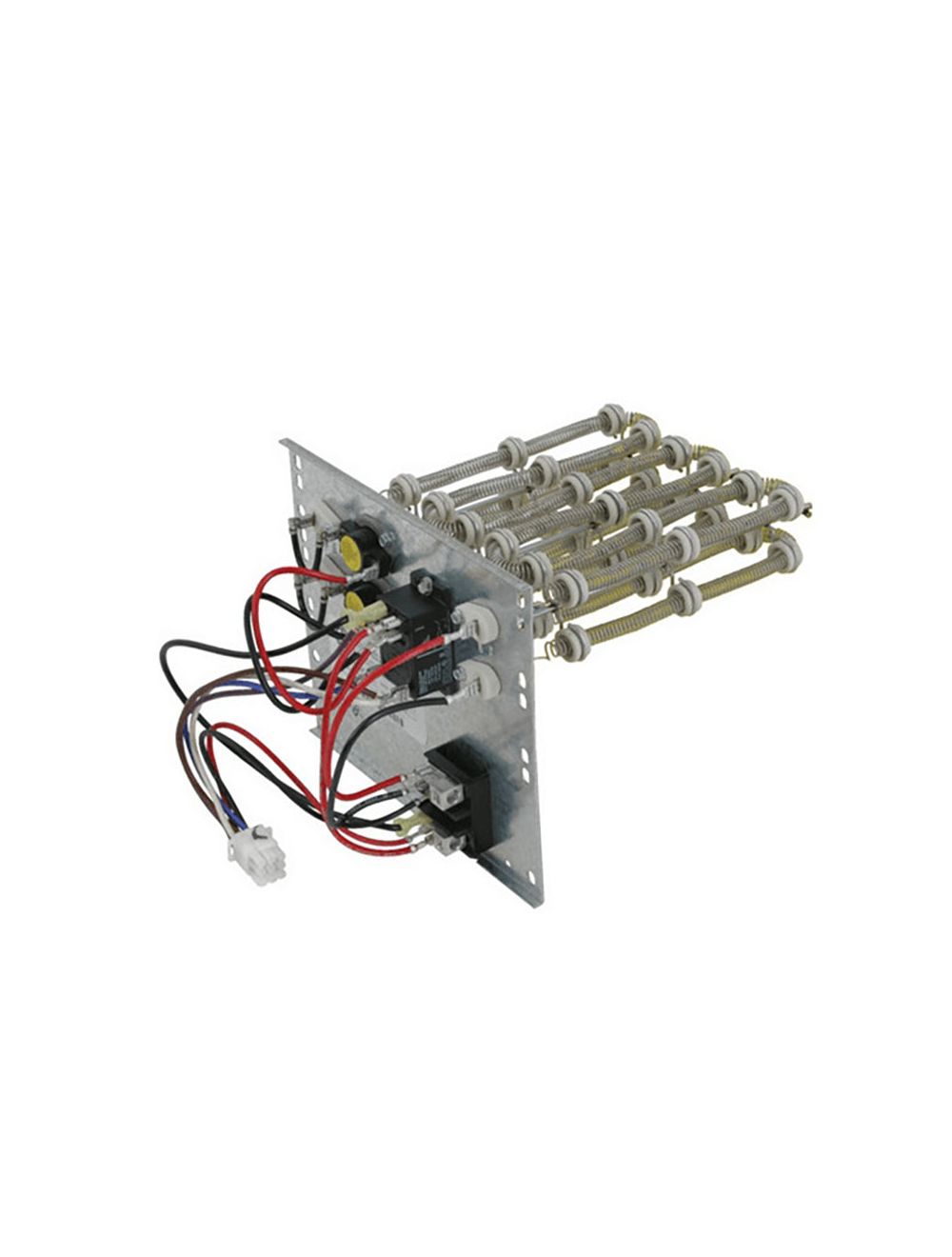

The Daikin HKTSN05X1 is a 4.8 kW electric heat kit compatible with Goodman AWST, AHVE, and AMVT Air Handlers. This unit offers supplemental heating with sequencers for effective temperature control. It arrives pre-assembled and pre-tested, ensuring immediate use. The control circuitry simplifies the staging process and includes a fuse link for high-temperature limit control. Installation is straightforward with a plug-in wiring harness. The rust-resistant nickel chromium construction of the heat elements enhances durability. The unit meets safety standards as it is ETL Listed. Dimensions are eight point five inches by nine point twenty-five inches by fourteen point five inches, with a weight of four pounds.
- Supports multiple branch circuits for flexible installation.
- Constructed with durable, rust-resistant nickel chromium heat elements.
- Integrated control circuitry for easy staging.
Product Highlights
Reliable supplemental heating solution for air handlers.
Product Information
Standard Information
-
SKU: 2473
-
Model: HKTSN05X1
Technical Specifications
-
Dimensions: 8.5 inches W x 9.25 inches D x 14.5 inches H
-
Type: Heat Strip
-
Product Line: HKTS
-
Electric Heat Capacity: 4.8 kW
-
Voltage: 208/240 Volts
-
Phase: 1
-
Frequency: 60 Hz
-
Factory Installed Circuit Breaker: No
-
Product Weight: 4 Pounds
-
Shipping Height: 14.5 inches
-
Shipping Width: 8.5 inches
-
Shipping Length: 9.25 inches
-
Shipping Weight: 7 Pounds
-
UL Listed: Yes
-
ETL Listed: Yes
-
ISO Certified: Yes
