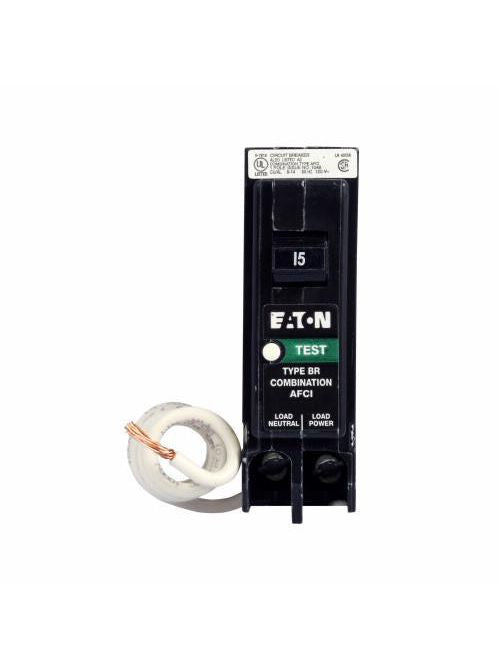

Cutler-Hammer Manufacturing Co. BRCAF115 Eaton Electrical 15 Amp 10 kAIC 1-Pole Combination AFCI Circuit Breaker

Product Description

The Cutler-Hammer Manufacturing Co. BRCAF115 is a type BRC one-inch combination arc fault circuit interrupter (AFCI) circuit breaker. This single-pole device operates at fifteen amps and one hundred twenty volts with a ten kAIC interrupt rating.

• Suitable for residential electrical applications.
• Meets federal specifications W-C375 and UL 1699 standards.
• Accommodates wire sizes from fourteen to four AWG for copper or aluminum conductors.

Product Highlights

This breaker is designed to prevent electrical fires caused by arcing by detecting hazardous arc conditions. Its compact size makes it easy to install in residential panels.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Voltage: 120 Volt
• Amperage: 15 Amp
• Interrupt Rating: 10 kAIC
• Number of Poles: 1 Pole
• Wire Size: 14-4 AWG
• Height: 1.25 inches
• Width: 3.5 inches
• Length: 6 inches
• Weight: 0.45 lb
• Mounting Type: Pigtail, Standard
• Standard Compliance: Federal Specifications Classification W-C375, UL 1699
