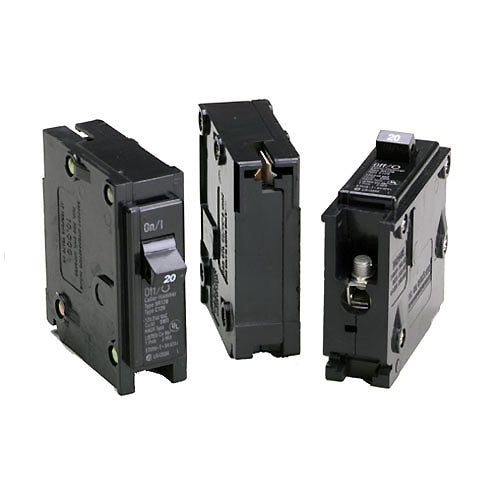

Cutler-Hammer BR120 Circuit Breaker

Product Description

The Cutler-Hammer Manufacturing Co BR120 is a single pole circuit breaker designed for use in electrical systems. This unit is plug-in mounted and rated for a current of twenty Amps. It supports voltage levels of one hundred twenty to two hundred forty volts AC and has a maximum interrupting capacity of ten thousand Amperes.

• Features a one pole configuration with a one inch width per pole.
• Suitable for large tungsten lamp loads due to its high magnetic trip setting.
• Meets UL and CSA safety standards, confirming its reliability.

Product Highlights

This circuit breaker is ideal for residential and commercial applications requiring dependable performance. It accommodates wire sizes ranging from fourteen to four AWG in copper or aluminum, making it versatile for various installations.

Product Information

Standard Information

• Type: BR
• Number of Poles: 1

Technical Specifications

• Ampere Rating: 20
• Voltage Rating: 120/240
• Mounting Type: Plug-In
• Interrupting Rating: 10
• Wire Size: #14 to #4 Cu/Al
• Height: 3 inches
• Width: 1 inch
• Depth: 3 inches
• HACR Rated: Yes
• Standards: UL Listed and CSA Certified
• Warranty: 5 Years
