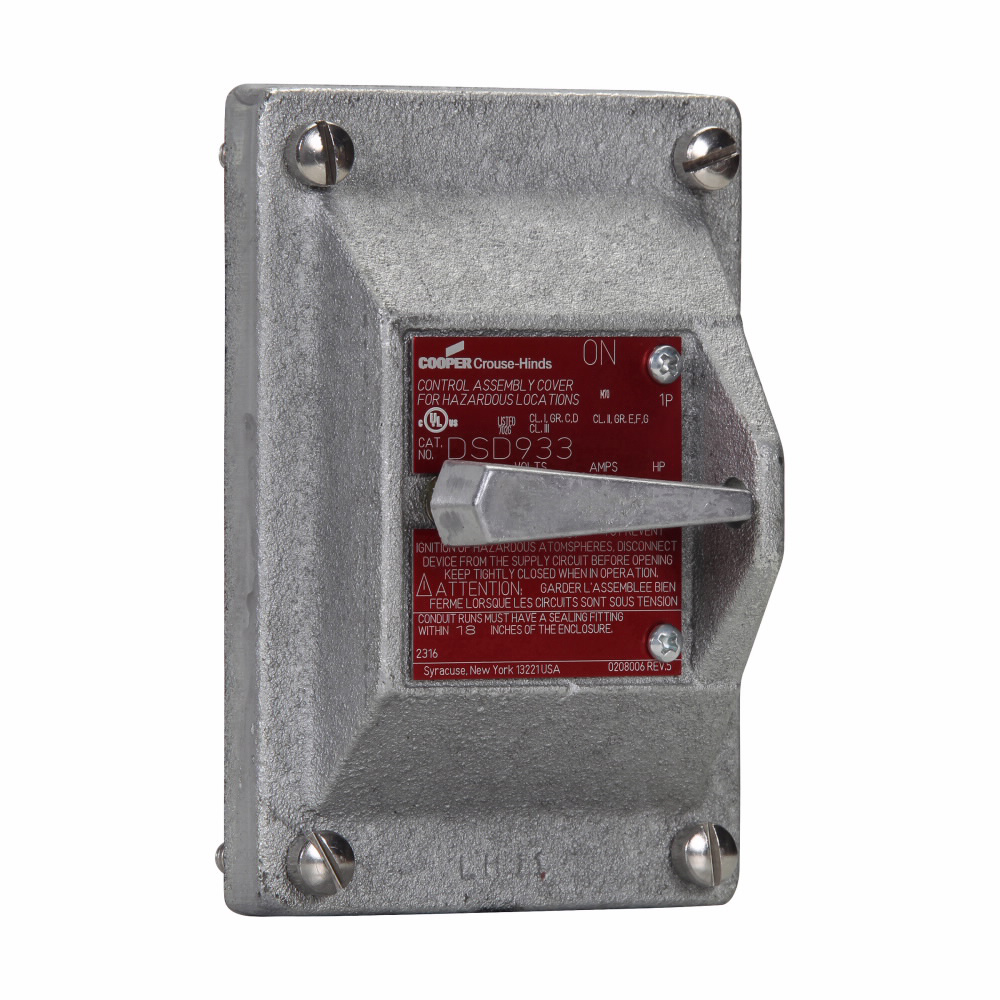

Crouse-Hinds DSD933 Snap Switch Cover and Sub-Assembly Device, 20A 1 Pole NEMA 3/7B/7C/7D/9E/9F/9G

Product Description

The Crouse-Hinds DSD933 Snap Switch Cover and Device Sub-Assembly, MPN DSD933, is designed for industrial control applications. This snap switch operates at voltages from 120 to 277 Vac and supports up to 20 amps. Built with Feraloy iron alloy, it is suitable for use in hazardous locations with specific NEMA ratings.

• 1-pole & Front operated switch
• Rated for 20 amps and voltages from 120 to 277 Vac
• Constructed from durable Feraloy iron for enhanced performance

Product Highlights

This device combines reliability with safety features, making it ideal for power distribution and control in industrial facilities. It meets CSA C22.2 and UL 1203 standards.

Product Information

Standard Information

• Manufacturer: Eaton Crouse-Hinds
• Catalog Number: DSD933

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 120 to 277 Vac
• Enclosure: NEMA 3/7B/7C/7D/9E/9F/9G
• Material: Feraloy iron alloy
• Weight: 2.5 lb
• Dimensions: Width 4.6 in, Height 6.7 in, Length 5.3 in
• Number of Poles: 1
