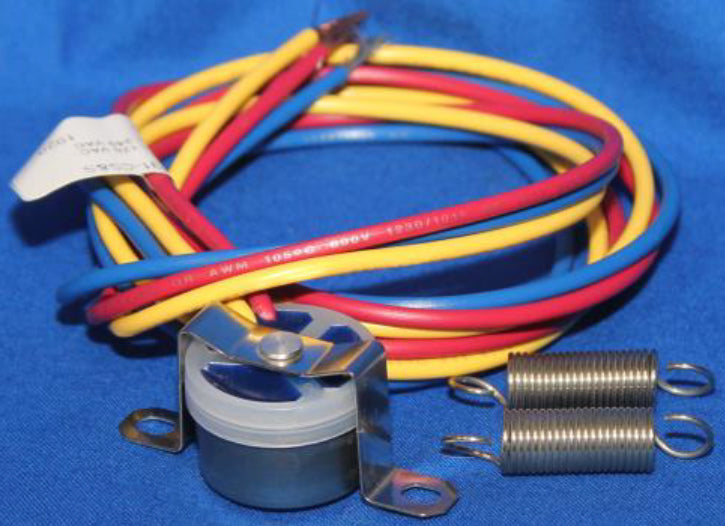

Crandall TC-2931-CS&S Strap-On Type Changeover Thermostat

Product Description

The Crandall TC-2931-CS&S Strap-On Type Changeover Thermostat is suitable for monitoring liquid temperatures in pipes within heating and cooling systems. This thermostat reverses the control action based on room temperature detection. It utilizes a bimetal to operate a single-pole double-throw (SPDT) switch, capable of handling currents rated at 5.8 FLA and voltages up to 240 VAC.

• Designed for easy mounting on pipes with integrated springs.
• Fixed setpoint of 75 degrees Fahrenheit with a 15-degree differential.
• Suitable for sensing hot water temperatures starting at 90 degrees Fahrenheit.

Product Highlights

This thermostat provides reliable temperature control in HVAC systems. It includes components for versatile installation and high performance.

Product Information

Standard Information

• Brand: Crandall
• Part Number: TC-2931-CS&S

Technical Specifications

• Overall Size: 1 inch height x 2.125 inches width x 0.75 inches depth
• Weight: 0.2 lbs
• Mounting Pipe Size: 1.5 inches maximum
• Temperature Range: Minimum hot water 90 degrees Fahrenheit, maximum cold water 60 degrees Fahrenheit
• Switch Ratings: 5.8 FLA, 34.8 LRA, 125 VA at 120 VAC; 2.9 FLA, 17.4 LRA, 125 VA at 240 VAC
