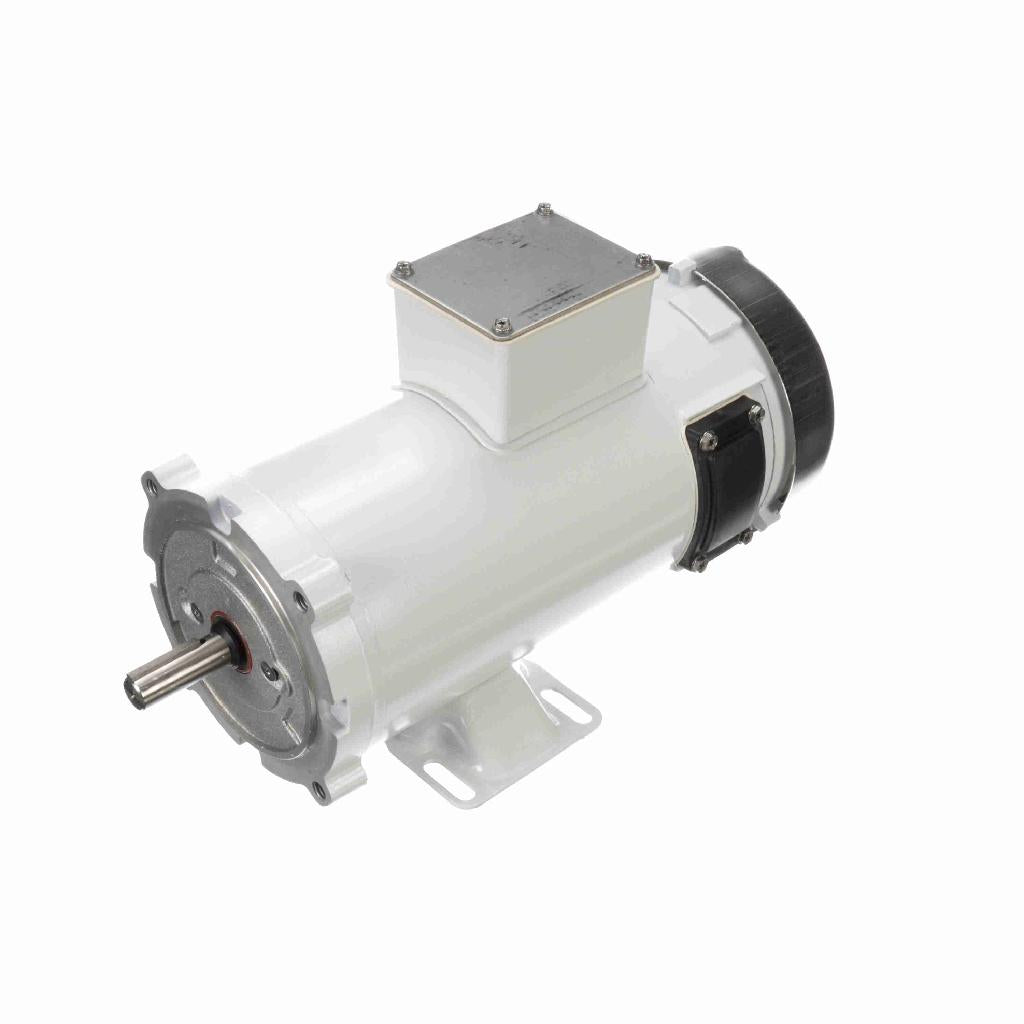

CENTURY MOTORS UDC154 Washdown Duty Motor 1 HP 90V DC

Product Description

The CENTURY MOTORS UDC154 is a 90V DC electric motor created for washdown tasks. It is designed with reversible rotation capabilities and features a 56C frame. Built with durable rolled steel, this motor includes ball bearings for smoother operation. It is suitable for C-face mounting and has overload protection for safety.

• Designed specifically for washdown duty
• Features reversible rotation
• Equipped with ball bearings

Product Highlights

This motor is ideal for environments that require frequent cleaning, ensuring reliable performance in wet conditions.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: UDC154

Technical Specifications

• Horsepower: 1 HP
• Input Voltage: 90 volts
• Full Load Current: 10.0 amps
• Speed: 1750 RPM
• Frame Size: 56C
• Rotation: Reversible
• Enclosure Material: Rolled steel
• Service Factor: 1.0
• Overload Protection: Yes
• Mounting Type: C-face mount
• Shaft Dimensions: 5/8 inch diameter x 1 7/8 inch length
• Bearings: Ball bearings
• Insulation Class: Class H
• Base Type: Rigid base
