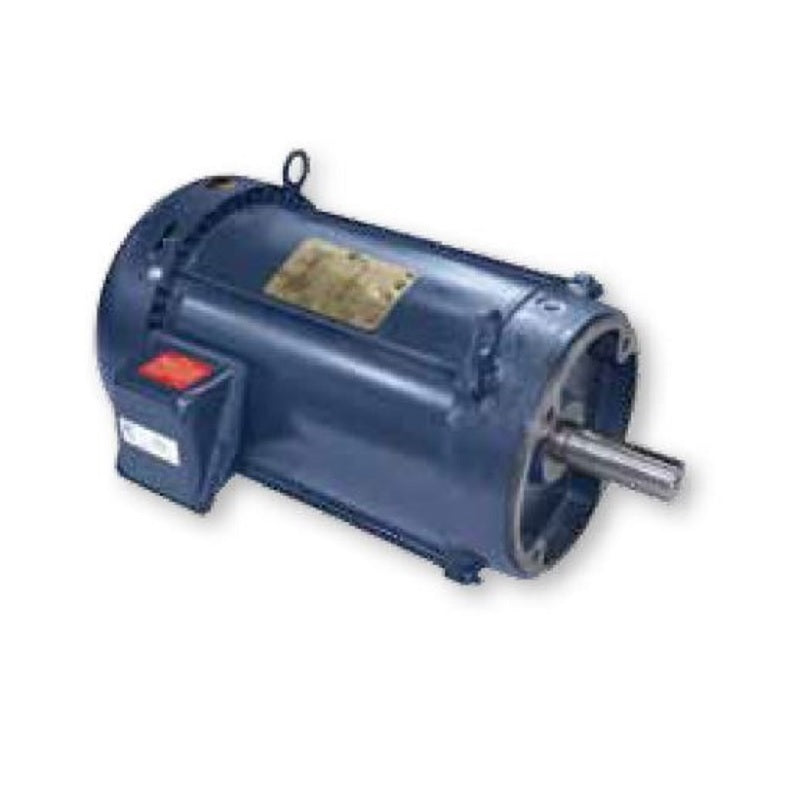

Century Motors CF103 Marathon Motors General Purpose Motors, 1 1/2 HP, 1740 RPM, 230/460 V

1 1/2 HP 1740 RPM 145TC TEFC 208-230V/460V General Purpose

These general purpose motors from Century Motors offer dependable and energy efficient operation. They are high-quality motors built for Canadas top industries. Find OAO, ODP, TEAO, TEFC, TENV enclosure types, and single- or 3-phase power input. Plus, a range of mounting options for your application.

Features:

Meets or exceeds NEMA Premium efficiency. Model is in compliance with EISA2173
Inverter duty 10:1 variable torque and 10:1 constant torque
1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
Standard assembly F1, reversible to F2 assembly

Specifications:

Output HP: 1.5 Hp
Output KW: 1.1 k
W
Frequency: 60 Hz
Voltage: 230/460 V
Current: 3.9/2.0 A
Speed: 1740 rpm
Service Factor: 1.15
Phase: 3
Duty: Continuous
Insulation Class: F
Frame: 145TC
Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Protection
Ambient Temperature: 40 C
