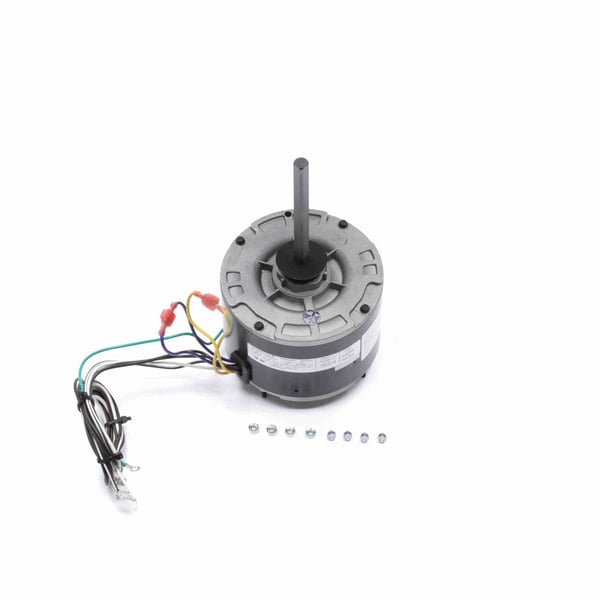

Century EM3727F PRO-E SERIES Condenser Fan Motor 1/6 HP 1 Phase 60 Hz 208-230 V

Product Description

The Century EM3727F PRO-E SERIES Condenser Fan Motor is a reliable component designed for condenser fan applications. Operating at 1/6 HP, this single-phase motor works efficiently on 208-230 volts and at 60 Hertz, achieving a speed of 1075 RPM. It features a thermally protected and totally enclosed design, ensuring optimal performance in various HVAC/R settings.

• Thermal protection for long-lasting durability
• Compatible with a wide range of HVAC applications
• Requires a 5 Mfd-370 Volts capacitor (not included)

Product Highlights

This motor is constructed for performance and safety, making it ideal for HVAC technicians and professionals in the cooling industry.

Product Information

Standard Information

• Brand: Century
• MPN: EM3727F

Technical Specifications

• Phase: 1
• Output HP: 1/6 HP
• Output KW: 0.13 kW
• Voltage: 208-230 V
• Speed: 1075 RPM
• Frame: 48
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Frequency: 60 Hz
• Current: 1.0-1.1 A
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Rotation: Reversible
• Mounting: Extended Studs
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 10.42 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 6.0 in
• Horsepower: 1/6 HP
• Amps: 1.1
