CENTURY 6505VUI EVERGREEN VS Fan and Blower Motor 1/2 HP

Product Description

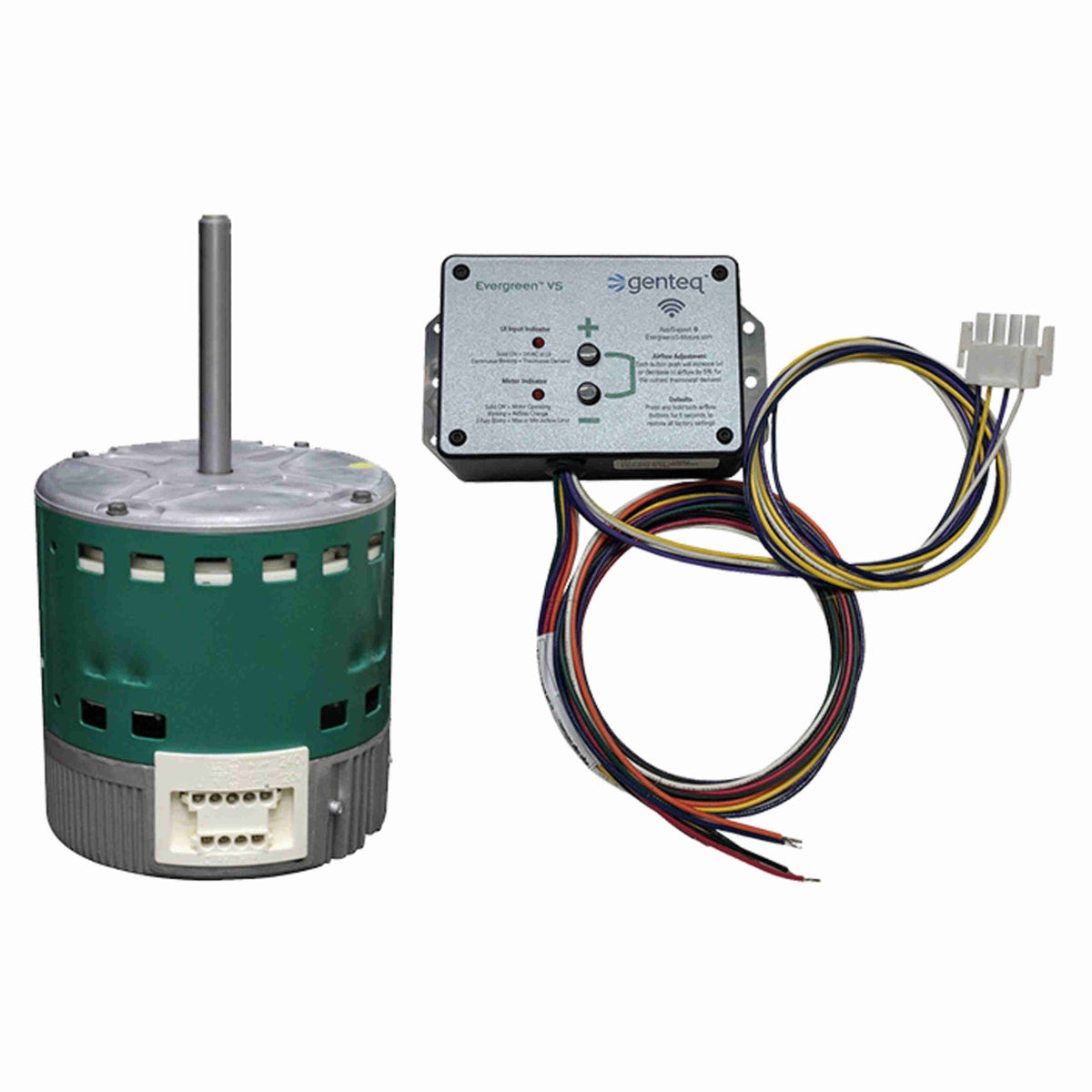

The CENTURY 6505VUI EVERGREEN VS Fan and Blower Motor is a reliable ECM variable speed replacement motor with a user interface model 5K010V. This motor includes electronic protection and features an open air over design. It has a half-inch diameter shaft with a flat end and includes thirty-six-inch leads. Built for performance, this motor operates at a 1/2 horsepower with a voltage capacity of 120/240 volts and reaches a speed of 1050 RPM. It is suitable for a range of fan and blower applications.

• Includes User Interface 5K010V
• Electronically Commutated (ECM) for efficiency
• 1/2 inch Diameter Shaft with Flat

Product Highlights

The CENTURY 6505VUI is designed for various HVAC applications.

Product Information

Standard Information

• Phase: 1
• Output HP: 1/2 HP

Technical Specifications

• Voltage: 120/240 V
• Speed: 1050 RPM
• Service Factor: 1
• Frame: 48
• Enclosure: Open Air Over
• Ambient Temperature: 40 °C
• Frequency: 60/50 Hz
• Current: 7.7/4.3 A
• Insulation Class: B
• Number of Speeds: 1
• Poles: 12
• Rotation: Counterclockwise/Clockwise
• Mounting: Round
• Frame Material: Rolled Steel
• Overall Length: 11.21 inches
• Shaft Diameter: 0.500 inches
