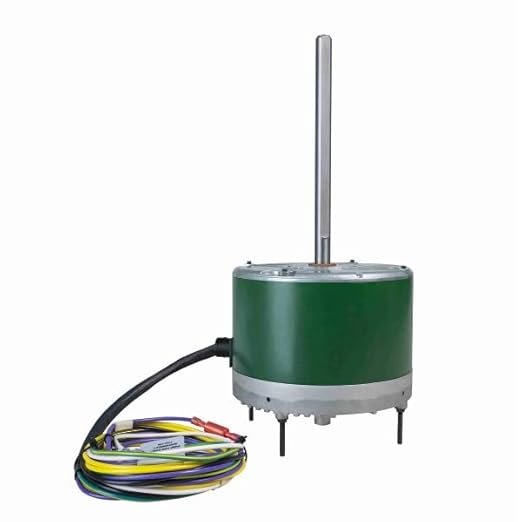

CENTURY 6303S 4-in-1 Condenser Fan Motor 1/3-1/6 HP

Product Description

The CENTURY 6303S 4-in-1 Condenser Fan Motor is designed for condenser fan applications. It operates efficiently at 208-230 volts with a frequency of sixty hertz and a speed of 1075 RPM. This motor includes automatic thermal protection and features a totally enclosed air over design. It is suitable for installations with horizontal or vertical shaft-down mounting options.

• 4-in-1 HeatMaster design for versatile applications
• Permanent Split Capacitor (PSC) requiring a capacitor of 7.5 Mfd-370 volts (not included)
• Automatic thermal protection for safety and reliability

Product Highlights

This motor is a suitable replacement for various factory-installed PSC outdoor condenser fan motors found in A/C systems and heat pumps.

Product Information

Standard Information

• Brand: CENTURY
• MPN: 6303S

Technical Specifications

• Phase: 1
• Output HP: 1/3-1/6 HP
• Output KW: 0.25 kW
• Voltage: 208-230 V
• Speed: 1075 RPM
• Service Factor: 1
• Frame: 48
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Frequency: 60 Hz
• Current: 2.1 A
• Duty: Air Over
• Insulation Class: F
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Horizontal or Vertical Shaft-down, Belly Band (not supplied), Extended Clamp Bolts, or OEM Mounting Holes
• Motor Orientation: Any
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Double Flat
• Overall Length: 11.49 inches
• Frame Length: 3.50 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 6.5 inches
• Packaged Length: 13.78 inches
• Packaged Width: 6.42 inches
• Packaged Height: 6.81 inches
