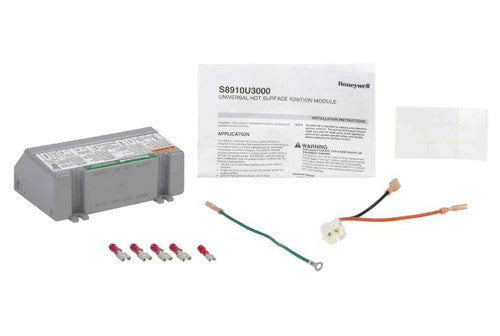

CARRIER S8910U3000 Hot Surface Ignition Module

Product Description

The CARRIER S8910U3000 is a hot surface ignition module catering to various appliance ignition systems. This module is designed to replace multiple models from White-Rodgers, Robertshaw, and Honeywell. It supports both local and remote flame sensing, which allows for flexible use in different ignition setups. The S8910U3000 operates with 120 Vac surface igniters.

• Replaces over 800 hot surface ignition models from leading brands.
• Offers selectable ignition trials: one or three trials for each heat call.
• Equipped with an LED status indicator and microammeter ports for effective troubleshooting.

Product Highlights

This module features field-selectable ignition trials, supporting varied ignition designs. The reliable ambient operating temperature range ensures functionality in diverse settings, making it suitable for HVAC professionals.

Product Information

Standard Information

• Vendor Name: Resideo
• URI Part Number: S8910U3000

Technical Specifications

• Supply Voltage: 24V
• Maximum Valve Contact Rating: 2 A
• Current Draw: 0.4 A plus valve load
• Hot Surface Igniter Voltage: 120 Vac, 60 Hz
• Ignition Sequence: Selectable via DIP switches
• Operating Temperature Range: -40 to +175°F
• Dimensions: Length 4.56 inches, Width 5.25 inches, Height 3.125 inches
