Product Description

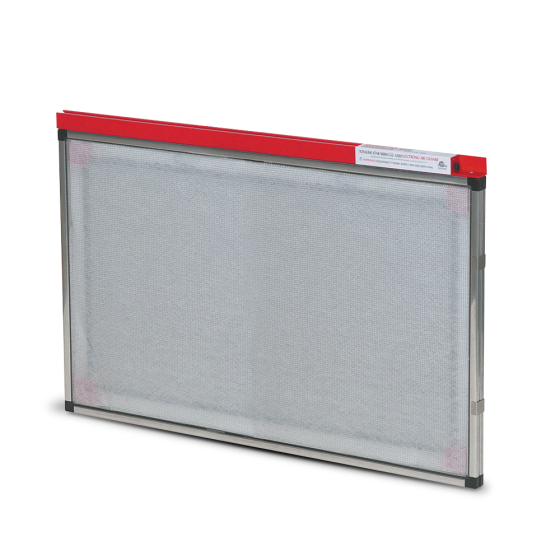

The Carrier P101-1625C electronic air cleaner is made for installation in the duct system, replacing a standard one-inch filter in a furnace or air handler. This unit runs on a twenty-four VAC power supply and effectively removes airborne particles like pollens, allergens, bacteria, dust mites, smoke, and chemicals.
- Replaces standard one-inch filter.
- Operates with a twenty-four VAC power supply.
- Captures particles as small as 0.01 microns.
Product Highlights
This electronic air cleaner improves indoor air quality by filtering out harmful particles efficiently.
Product Information
Standard Information
-
Brand: Carrier
-
MPN: P101-1625C
Technical Specifications
-
Voltage: 24
-
Voltage Range: 18V min. to 30V max.
-
Power Consumption: Max 2.5 watts
-
Current Draw: Max 0.1A
-
Filter Size: 16 inches x 25 inches
-
Dimensions: 15.625 inches x 24.625 inches
-
Weight: 35.00 lbs
-
Efficiency: Down to 1 micron
-
Pressure Drop: 0.18 in W.G.
-
MERV: 10 @ 295 fpm
-
Safety Standards: California Prop 65
