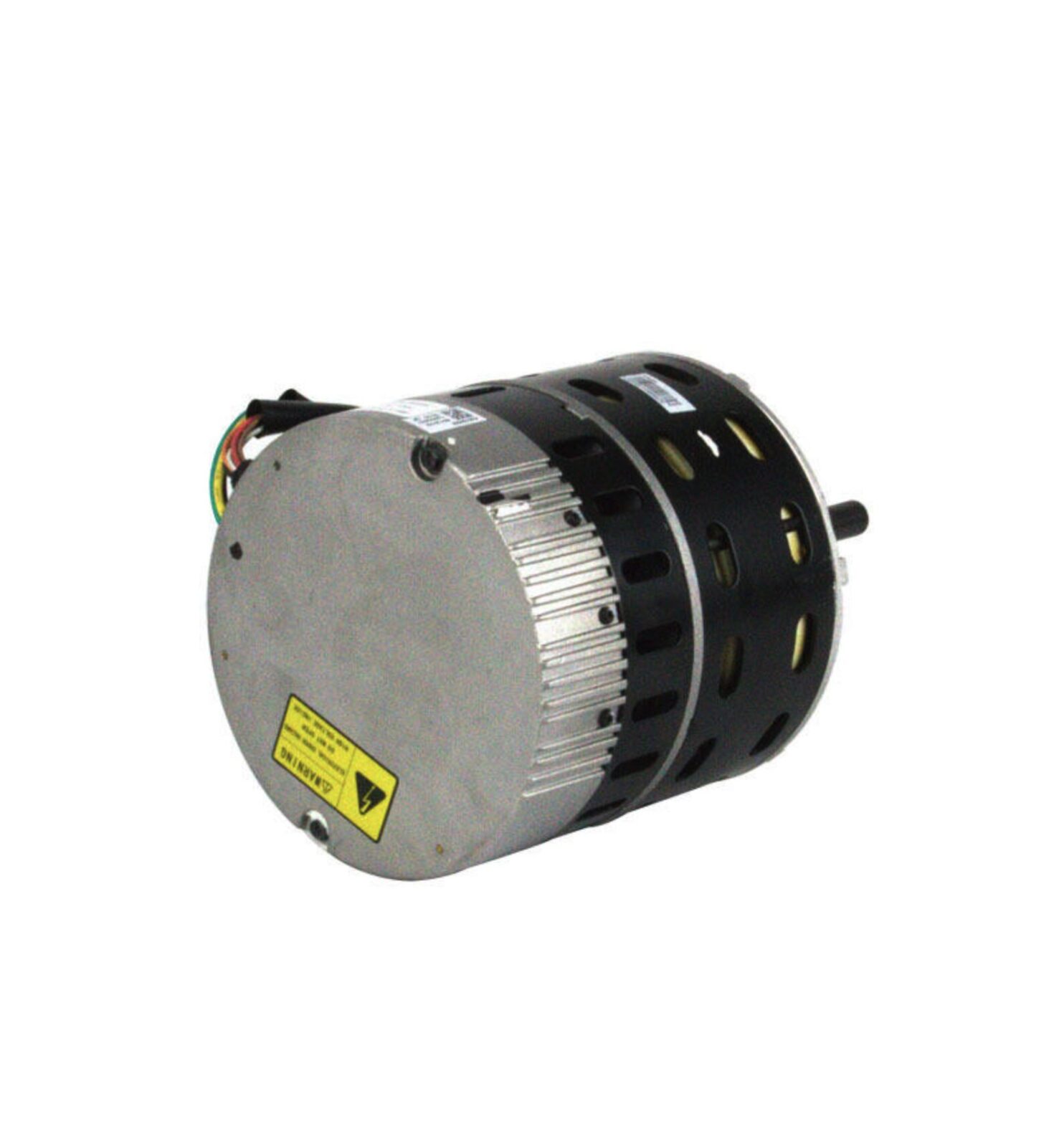

CARRIER 1190589 ECM Blower Motor Assembly 1/2 HP Replacement 1179682

Product Description

The CARRIER 1190589 ECM Blower Motor Assembly is a single-phase replacement motor suitable for HVAC systems. It operates efficiently at a voltage of two hundred eight to two hundred thirty and can work at frequencies of fifty or sixty Hertz. The motor provides a power output of one-half horsepower and rotates counter-clockwise at one thousand fifty RPM. It has a shaft diameter of one-half inch and a length of four inches, utilizing durable ball bearings for smooth operation.

• Functions as a direct replacement for part number 1179682.
• Operates at 208/230 voltage and 50/60 Hertz.
• Features a 1/2 inch diameter shaft with a 4 inch length.

Product Highlights

This blower motor assembly is designed for easy installation with a belly band mount and a five-pin connector.

Product Information

Standard Information

• Manufacturer: ICP
• Model Number: 1190589

Technical Specifications

• Horsepower: 1/2
• Voltage: 208/230
• Hertz: 50/60
• Number of Phases: 1
• RPM: 1050
• Rotation: CCW
• Shaft Length: 4 inches
• Shaft Diameter: 1/2 inch
• Bearing Type: Ball
• Mounting Type: Belly Band
• Connector Type: 5 Pin Connector
