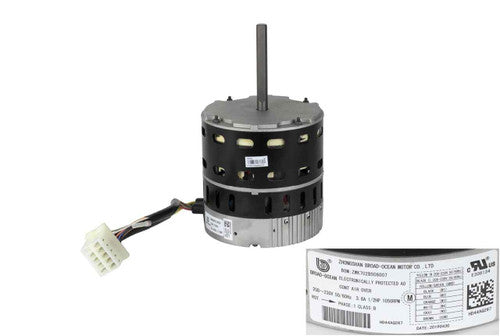

CARRIER 1188129 ECM X-13 Blower Motor Assembly 1/2

Product Description

The CARRIER 1188129 ECM X-13 Blower Motor Assembly features a half horsepower single-phase motor. It is designed for continuous air-over cooling and operates effectively at 208-230 volts and fifty to sixty Hertz. The motor consumes 3.80 amperage and rotates clockwise at 1050 RPM. Built with a 48-frame structure, it has a single side flat type shaft measuring one-half inch in diameter and three and fifteen-sixteenths inches in length.

• Operates at 208-230 volts with 3.80 amperage.
• Features a single side flat shaft with a diameter of one-half inch.
• Designed for maintaining consistent airflow in HVAC systems.

Product Highlights

This blower motor assembly is electronically protected with Class B insulation, ensuring reliability and safety in various HVAC applications.

Product Information

Standard Information

• Manufacturer: Zhongshan Broad-Ocean Motor Co., LTD.
• Model: ZWK702B506007

Technical Specifications

• Horsepower: 1/2
• Voltage: 208-230
• Hertz: 50/60
• Amperage: 3.80
• Phase: Single
• RPM: 1050
• Frame: 48
• Electronically Protected: True
• Motor Duty/Cooling: Continuous Air Over
• Insulation Class: B
• Rotation: Clockwise Lead End
• Shaft Type: Single Side Flat Shaft
• Shaft Diameter: 1/2
• Shaft Length: 3 15/16
