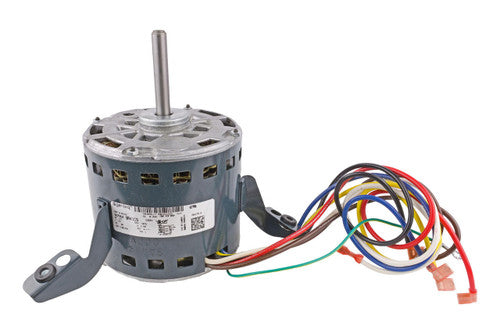

CARRIER 1186888 Blower Motor 1/3 Horsepower 115V Replacement 1183466

Product Description

The CARRIER 1186888 blower motor is designed for HVAC systems and manufactured by Genteq. This motor operates at 115 volts with a horsepower rating of 1/3. It functions on both 50 and 60 Hz frequencies and is a single-phase motor. The amperage is rated at 5.60 for efficient performance, and it achieves a rotational speed of 1075 RPM. The 1186888 features four different speeds and has a counter-clockwise rotation.

• Operates at 115V, 5.60 Amps, and 1075 RPM.
• Includes a 1/2 inch shaft diameter with a length of 2-3/4 inches.
• Direct replacement for part number 1183466.

Product Highlights

This blower motor is thermally protected, ensuring safety and longevity. It has class B insulation and is capable of continuous air over operation.

Product Information

Standard Information

• Manufacturer: Genteq
• Weight: 13.05 lbs

Technical Specifications

• Horsepower: 1/3
• Voltage: 115
• Hertz: 50/60
• Number of Phases: 1
• Amps: 5.60
• RPM: 1075
• Number of Speeds: 4
• Rotation: CCW
• Frame: 48
• Shaft Diameter: 1/2
• Shaft Length: 2-3/4
• Insulation Class: B
• Thermally Protected: true
• Continuous Air Over: true
• Dimensions: 14.55 x 11.25 x 10.5
