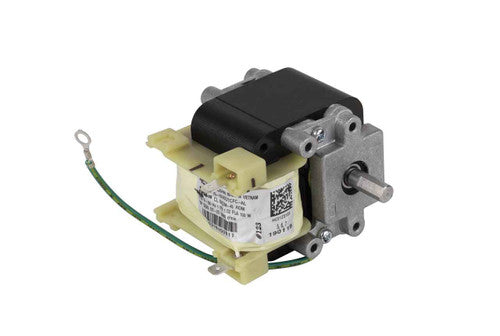

CARRIER 1186530 Draft Inducer Motor

Product Description

The CARRIER 1186530 draft inducer motor is suitable for HVAC applications. This motor operates at 115 volts and 60 hertz, providing reliable performance for various industrial uses.

• Single-phase motor with air-over cooling
• Operates at a speed of 3000 RPM
• CUL recognized for safety and efficiency

Product Highlights

This motor is designed to be installed in equipment that requires a draft inducer. It features a stack size of one and nine-sixteenths inches, allowing it to fit in specific applications effectively.

Product Information

Standard Information

• Manufacturer: Sungshin
• Model Number: IS-3240UTCFC-AL

Technical Specifications

• Voltage: 115
• Hertz: 60
• Full Load Amperage: 1.52
• Watts: 103
• RPM: 3000
• Phase: Single
• Motor Cooling: Air Over
• Stack Size: 1 9/16
• Cooling Wheel Shaft Length: 3/4
• Cooling Wheel Shaft Diameter: 1/4
• Blower Shaft Length: 1 1/8
• Blower Shaft Diameter: 1/4
• Length: 5.5 inches
• Width: 7.75 inches
• Height: 4.75 inches
• Weight: 2.6 pounds
• Approvals: CUL Recognized
• Insulation Class: B
