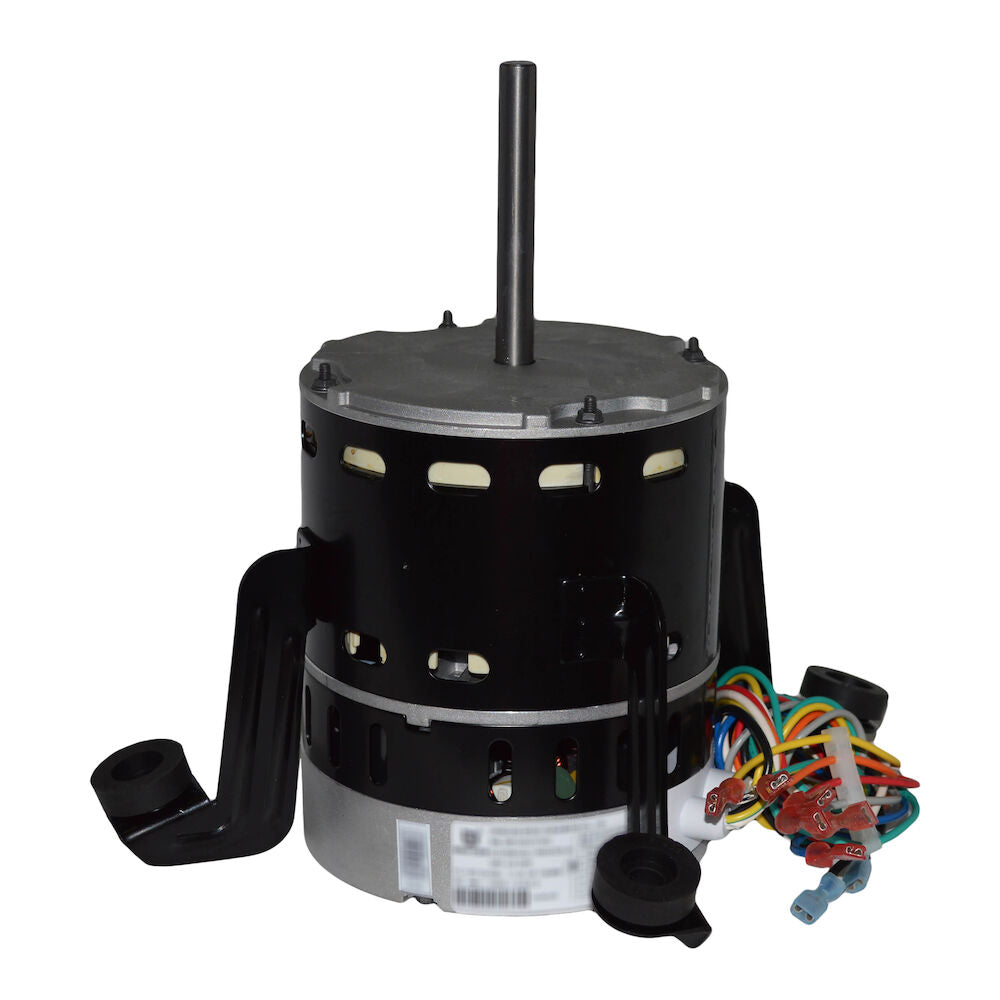

CARRIER 1186443 ECM Blower Motor 1 HP

Product Description

The CARRIER 1186443 is an ECM blower motor with one horsepower designed for HVAC systems. It operates at 115-120 volts and supports both 50 and 60 Hz. With an amperage of 11.50 and single-phase functionality, it can effectively manage air circulation.

• Designed for continuous air over cooling.
• Counterclockwise rotation for optimal airflow.
• Includes flat shaft with diameter of 1/2 inches.

Product Highlights

The motor features high-quality ball bearings, Class B insulation, and a rotation speed of 1050 RPM.

Product Information

Standard Information

• Brand: CARRIER
• MPN: 1186443

Technical Specifications

• Manufacturer: Zhongshan Broad-Ocean Motor Co., LTD.
• Model: ZWK702E0757001
• Horsepower: 1.0
• Voltage: 115-120
• Hertz: 50/60
• Amperage: 11.50
• Phase: Single
• RPM: 1050
• Frame: 48
• Motor Duty/Cooling: Continuous Air Over
• Insulation Class: B
• Bearings: Ball
• Mounting: Arm & Grommet
• Rotation: Counterclockwise Lead End
• Shaft Type: Single Side Flat Shaft
• Shaft Diameter: 1/2 inches
• Shaft Length: 3 15/16 inches
• Domestic / Import: Import
