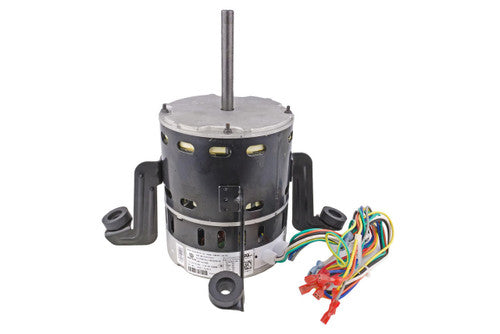

CARRIER 1186441 ECM Blower Motor Assembly

Product Description

The CARRIER 1186441 ECM Blower Motor Assembly includes an ECM blower motor and module produced by Broad-Ocean. It is designed for use in HVAC systems, operating at a voltage of 115-120 volts with a frequency of 50/60 Hz in a single-phase format. The motor draws 11.5 amps and runs at a rated speed of 1050 RPM with counter-clockwise rotation.

• Operates at 115-120 volts, 50/60 Hz, single phase.
• Features a 1/2 inch diameter shaft, 4 inches in length.
• Designed for arm and grommet mounting.

Product Highlights

This blower motor assembly is engineered for reliability and efficiency in air handling applications.

Product Information

Standard Information

• Manufacturer: Broad-Ocean
• Horsepower: 1

Technical Specifications

• Voltage: 115-120
• Hertz: 50/60
• Number of Phases: 1
• Amps: 11.5
• RPM: 1050
• Rotation: CCW
• Frame: 48
• Shaft Diameter: 1/2
• Shaft Length: 4
• Bearing: Ball
• Mount: Arm And Grommet
• Class: B
• Electronically Protected: Continuous Air Over
