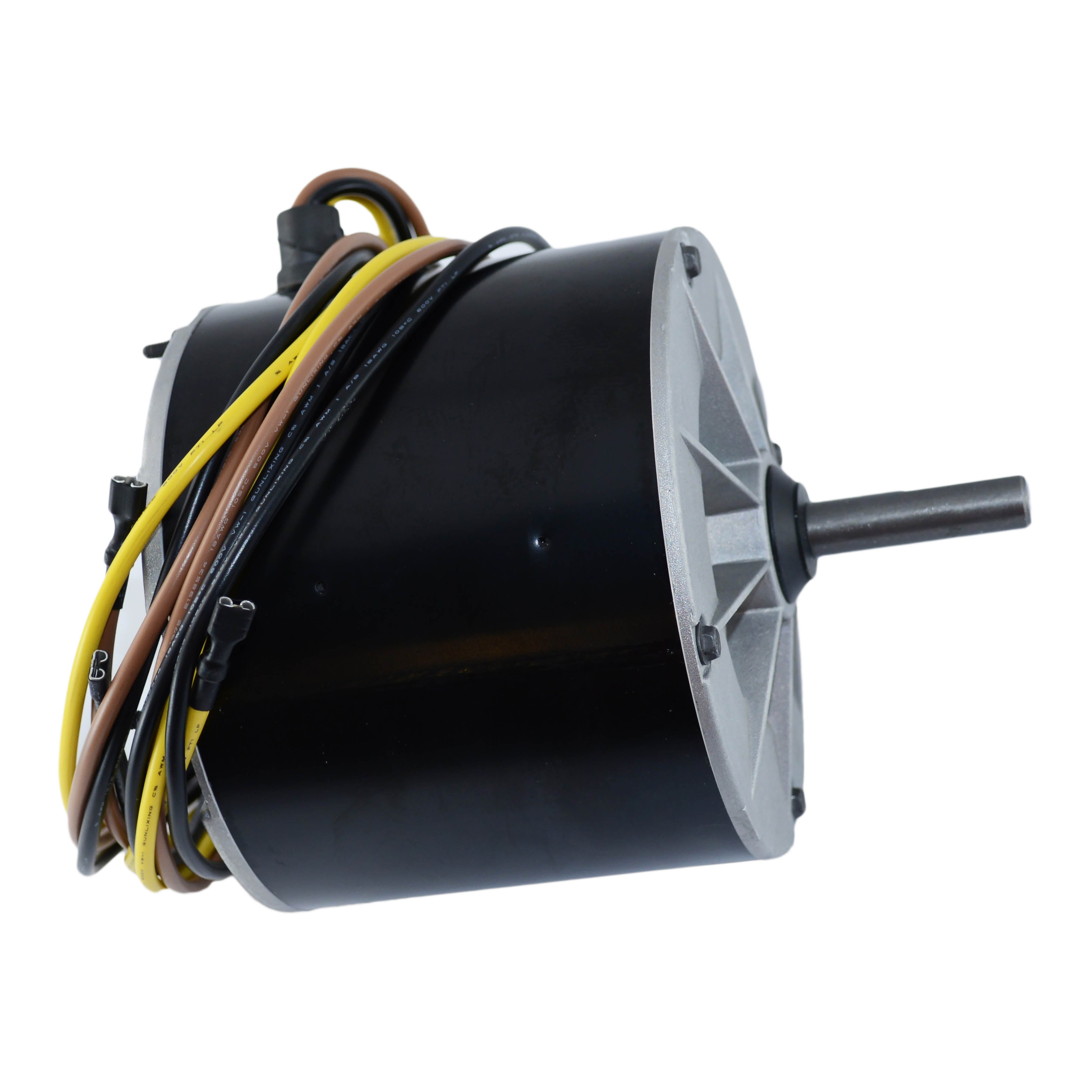

CARRIER 1186359 Condenser Fan Motor

Product Description

The CARRIER 1186359 is an efficient condenser fan motor that meets the demands of industrial applications. This motor features a robust steel frame and an aluminum flange designed for reliable performance. Operating at a speed of eight hundred ten RPM, it supports through-bolt mounting to ensure secure installation.

• Durable steel frame and aluminum flange construction.
• Rotation speed of 810 RPM.
• Designed for through-bolt mounting.

Product Highlights

The CARRIER 1186359 combines performance and durability in one unit, ideal for HVAC applications.

Product Information

Standard Information

• Brand: CARRIER
• MPN: 1186359

Technical Specifications

• Voltage Rating: 230 V
• Amperage Rating: 1.2 A
• Horsepower: 1/5 hp
• Speed Rating: 810 rpm
• Phase: 1 ph
• Frequency Rating: 60 Hz
• Frame Size: 48
• Shaft Size: 1/2 in Dia x 2 in L
• Rotation Type: Clockwise
• Number of Speeds: 1
• Bearing Type: Sleeve
• Mounting Type: Through-Bolt
• Service Factor: 1
• Weight: 15.00 Lbs.
