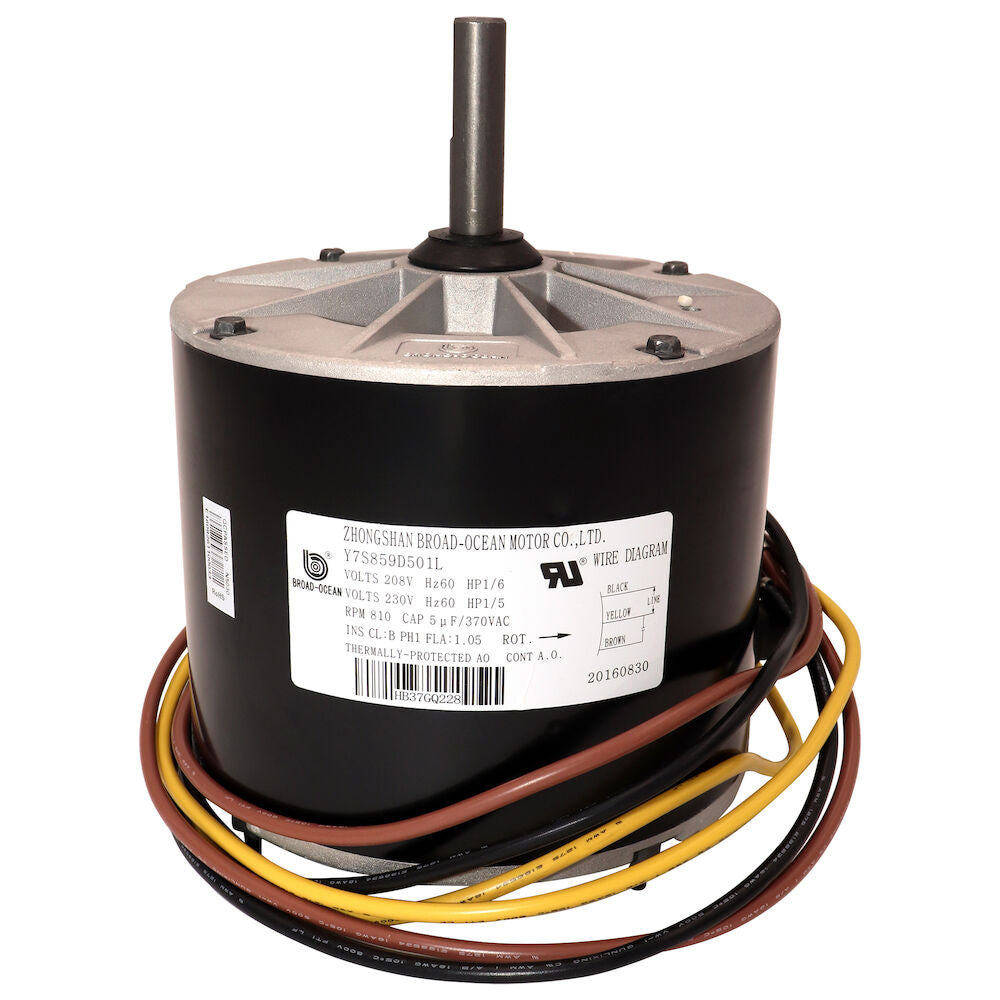

CARRIER 1186358 Condenser Fan Motor - 1/5 HP (208-230V)

Product Description

The CARRIER 1186358 is a condenser fan motor tailored for HVAC systems. It runs on 208-230V power at 60Hz, providing 1/5 horsepower. This unit operates at a speed of 810 RPM with a full load amperage of 1.05.

• Condenser fan motor with single-phase design.
• Features thermal protection and continuous air over cooling.
• Requires a 5 MFD capacitor at 370 VAC for operation.

Product Highlights

The CARRIER 1186358 is built to last with high-quality materials, ensuring optimal performance in your cooling system.

Product Information

Standard Information

• Brand: CARRIER
• MPN: 1186358

Technical Specifications

• Horsepower: 1/5 hp
• Manufacturer: International Comfort Products
• Model: Y7S859D501L
• Hertz: 60
• Full Load Amperage: 1.05
• Phase: Single
• RPM: 810
• Speeds: Single
• Frame: 48
• Thermally Protected: True
• Motor Duty/Cooling: Continuous Air Over
• Insulation Class: B
• Bearings: Ball
• Mount: Studs
• Capacitor Required: 5 MFD @ 370 VAC
• Rotation: Clockwise Lead End
• Shaft Type: Single Side Flat Shaft
• Shaft Diameter: 1/2
• Shaft Length: 2 1/4
