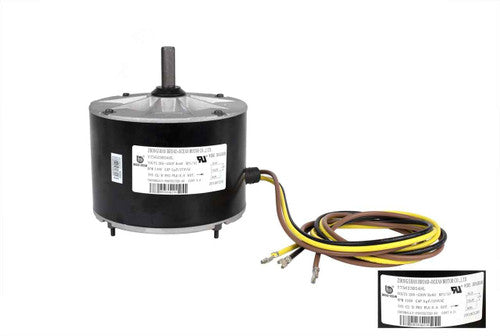

CARRIER 1186357 Condenser Fan Motor - 230V, 1/10 HP, 1100 RPM

Product Description

The CARRIER 1186357 Condenser Fan Motor is a vital component for HVAC systems, manufactured by Zhongshan Broad-Ocean Motor Co., LTD. This single-phase motor is designed to operate efficiently at 208-230V and 60Hz, providing 1/10 horsepower at a speed of 1100 RPM. The motor includes a 48 frame, ball bearings for smooth operation, and is equipped with stud mounting for easy installation.

• Operates at 208-230V, 60Hz, single-phase power.
• Offers 1/10 horsepower at 1100 RPM for optimal performance.
• Includes a 1/2 inch diameter, 1 1/2 inch long single-side flat shaft.

Product Highlights

This motor is thermally protected, featuring Class B insulation that allows for continuous air-over cooling, promoting durability and longevity. Its compact size makes it suitable for various HVAC applications.

Product Information

Standard Information

• Manufacturer: Zhongshan Broad-Ocean Motor Co., LTD.
• Model Number: Y7S623B548L

Technical Specifications

• Horsepower: 1/10
• Voltage: 208-230
• Hertz: 60
• Full Load Amperage: 0.60
• Phase: Single
• RPM: 1100
• Frame: 48
• Thermally Protected: Yes
• Motor Duty/Cooling: Continuous Air Over
• Insulation Class: B
• Bearings: Ball
• Mounting: Studs
• Rotation: Clockwise Lead End
• Shaft Type: Single Side Flat Shaft
• Shaft Diameter: 1/2 inch
• Shaft Length: 1 1/2 inches
• Item Number: 1186357
• Brand: International Comfort Products
