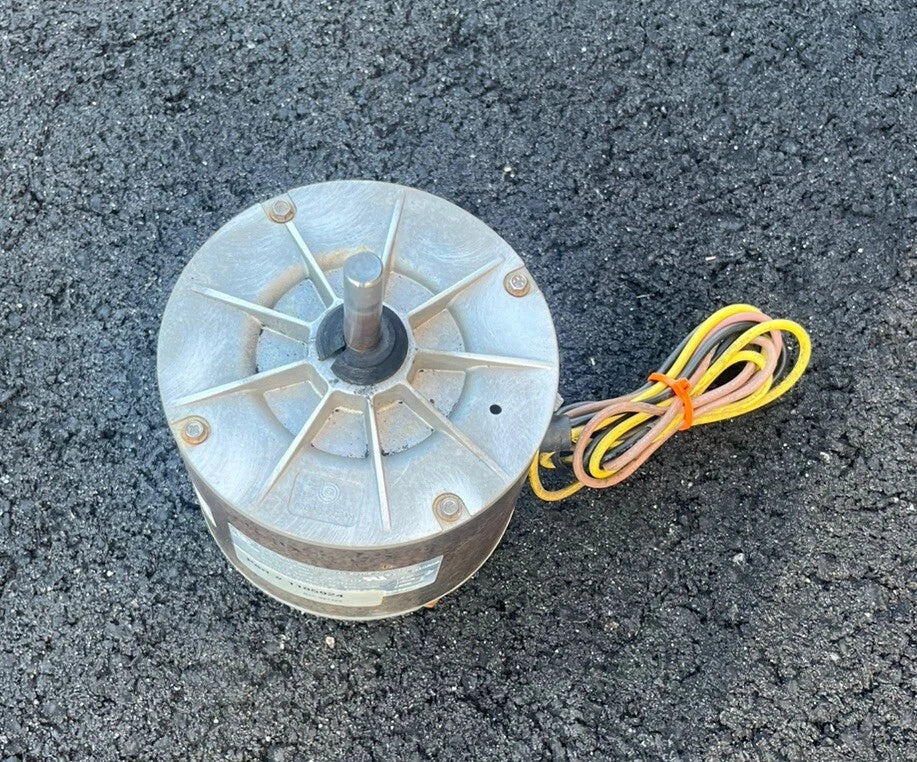

CARRIER 1185924 Condenser Fan Motor

Product Description

The CARRIER 1185924 Condenser Fan Motor is essential for powering condenser fans to support heating and cooling systems. Compatible with units like N4A5, HSA5, and N4A3, this motor is manufactured by Zhongshan Broad-Ocean Motor Co., LTD. It operates at a speed of 1110 RPM and needs a 5 MFD capacitor at 370 VAC to function properly.

• Powerful 1/4 horsepower motor for efficient performance.
• Designed for continuous air-over duty and cooling applications.
• Features a single-side flat shaft with dimensions of 1/2 inch diameter and 2 inch length.

Product Highlights

This motor is thermally protected and built to last, featuring robust construction with ball bearings and stud mounting.

Product Information

Standard Information

• Manufacturer: Zhongshan Broad-Ocean Motor Co., LTD.
• Model: Y7S623C835L

Technical Specifications

• Horsepower: 1/4
• Hertz: 60
• Full Load Amperage: 1.45
• Phase: Single
• RPM: 1110
• Speeds: 1
• Frame: 48
• Thermally Protected: Yes
• Motor Duty/Cooling: Continuous Air Over
• Insulation Class: B
• Bearings: Ball
• Mount: Studs
• Capacitor Required: 5 MFD @ 370 VAC
• Rotation: Clockwise Lead End
• Shaft Type: Single Side Flat Shaft
• Shaft Diameter: 1/2
• Shaft Length: 2
• Frequency: 60HZ
• Voltage: 208-230V
