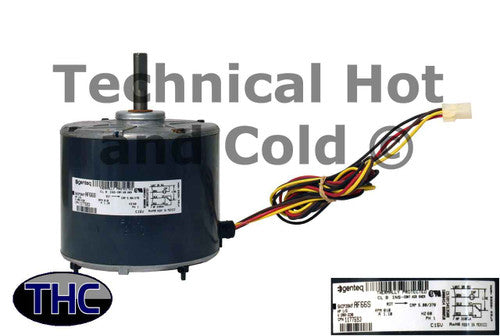

CARRIER 1177593 Fan Motor 1/5 HP 208-230V 810 RPM

Product Description

The CARRIER 1177593 is a reliable fan motor designed for HVAC systems. It has a horsepower of 1/5 and is compatible with voltages of 208-230V. This motor operates efficiently at sixty hertz with a single phase configuration.

• Operates at 208-230V with two-speed settings.
• Maximum speed of 810 RPM.
• Constructed for vertical shaft down mounting.

Product Highlights

This motor includes thermal protection to enhance durability and features continuous air over cooling.

Product Information

Standard Information

• Model Number: 1177593
• Manufacturer: Genteq

Technical Specifications

• Horsepower: 1/5
• Voltage: 208-230
• Hertz: 60
• Phase: Single
• Amperage: 1.10
• RPM: 810
• Speeds: 2
• Frame: 39
• Thermal Protection: Yes
• Cooling Type: Continuous Air Over
• Insulation Class: B
• Bearings: Sleeve
• Mounting Configuration: Vertical Shaft Down
• Rotation: Clockwise Lead End
• Capacitor Requirement: 5 MFD @ 370 VAC
• Shaft Type: Single Side Flat Shaft
• Shaft Diameter: 1/2 inches
• Shaft Length: 2 inches
