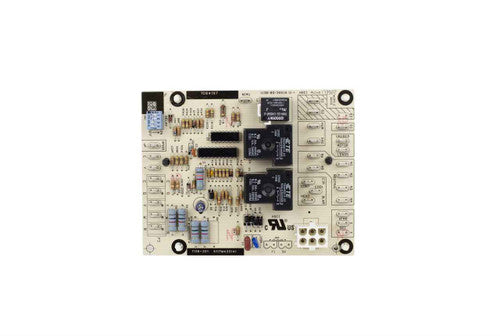

CARRIER 1084197 Fan Timer Board

Product Description

The CARRIER 1084197 Fan Timer Board manages fan operation in HVAC systems. It is compatible with various systems and can effectively control both blower and inducer motors. This board accepts an operating line voltage from eighty-five to one hundred thirty-five VAC at fifty or sixty Hz. The secondary control voltage ranges from eighteen to thirty VAC at the same frequency. It can handle a maximum blower load of fifteen FLA and thirty LRA at one hundred twenty VAC, along with an inducer load of three FLA and ten LRA.

• Operating line voltage: 85 to 135 VAC, 50/60Hz
• Secondary control voltage: 18.0 to 30.0 VAC, 50/60 Hz
• Board dimensions: 5 3/4 x 4 1/2 inches

Product Highlights

This timer board is essential for HVAC systems that require precise motor controls for optimal performance.

Product Information

Standard Information

• Item Number: 1084197
• Brand: CARRIER

Technical Specifications

• Operating Line Voltage: 85 to 135 VAC, 50/60Hz
• Secondary Control Voltage: 18.0 to 30.0 VAC, 50/60 Hz
• Maximum Blower Loading: 15 FLA, 30 LRA at 120 VAC
• Maximum Inducer Loading: 3 FLA, 10 LRA at 120 VAC
• Board Dimensions: 5 3/4 x 4 1/2 inches
