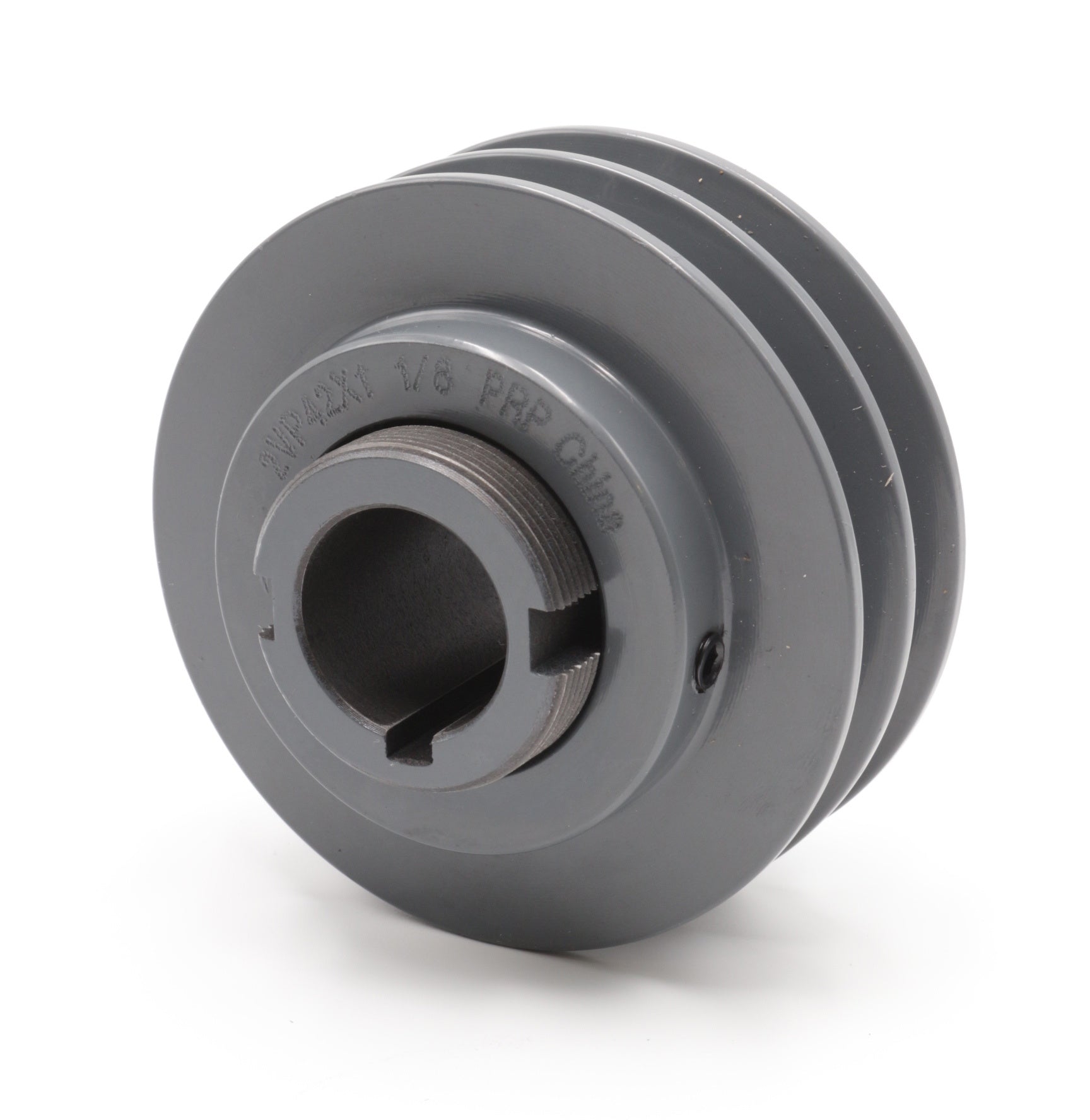

CAPTIVEAIRE 2VP42X1-1/8 VP Series Variable Pitch Pulley

Product Description

The CAPTIVEAIRE VP Series Variable Pitch Pulley with MPN 2VP42X1-1/8 is a finished bore sheave designed for applications requiring a two groove, five L and B belt trade size with a one point one two five inches shaft diameter. The pulley is ideal for managing varying speeds and loads in HVAC systems.

• Ideal for 2 groove, 5L, B belt trade size
• Constructed from durable cast iron material
• Compatible with applications needing precise speed control

Product Highlights

This variable pitch pulley allows for adjustment in speed and torque, enhancing system efficiency and performance.

Product Information

Standard Information

• Brand: CAPTIVEAIRE
• Part Number: 2VP42X1-1/8

Technical Specifications

• Color: Gray
• Material: Cast Iron
• Number of Grooves: 2
• Outside Diameter: 3.95 inches
• Max Datum Diameter: 3.9 inches
• Min Datum Diameter: 2.9 inches
• Bore Size or Bushing: 1.125 inches
• Max Turns: 1
• Min Turns: 6
• # of Set Screws: 1
• Bore Finish: Finished
• Compatible Belt Family: 5L, B
