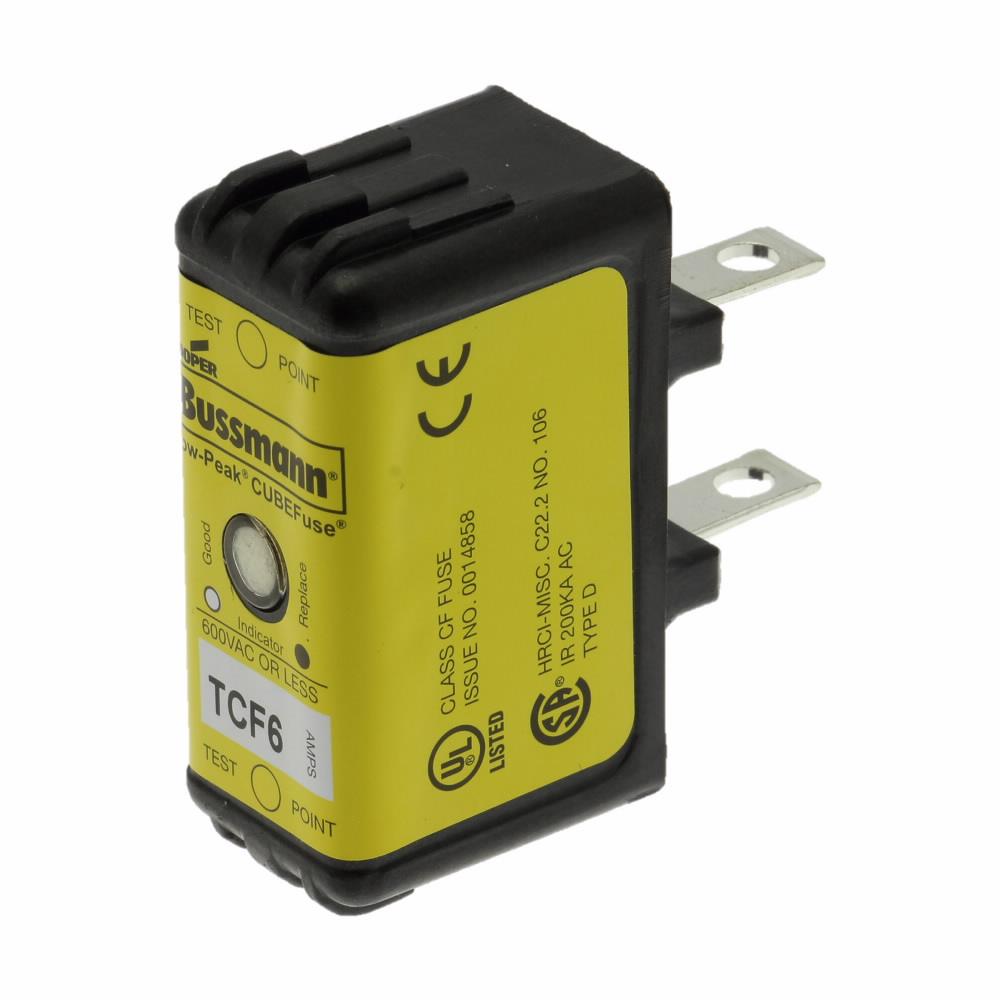

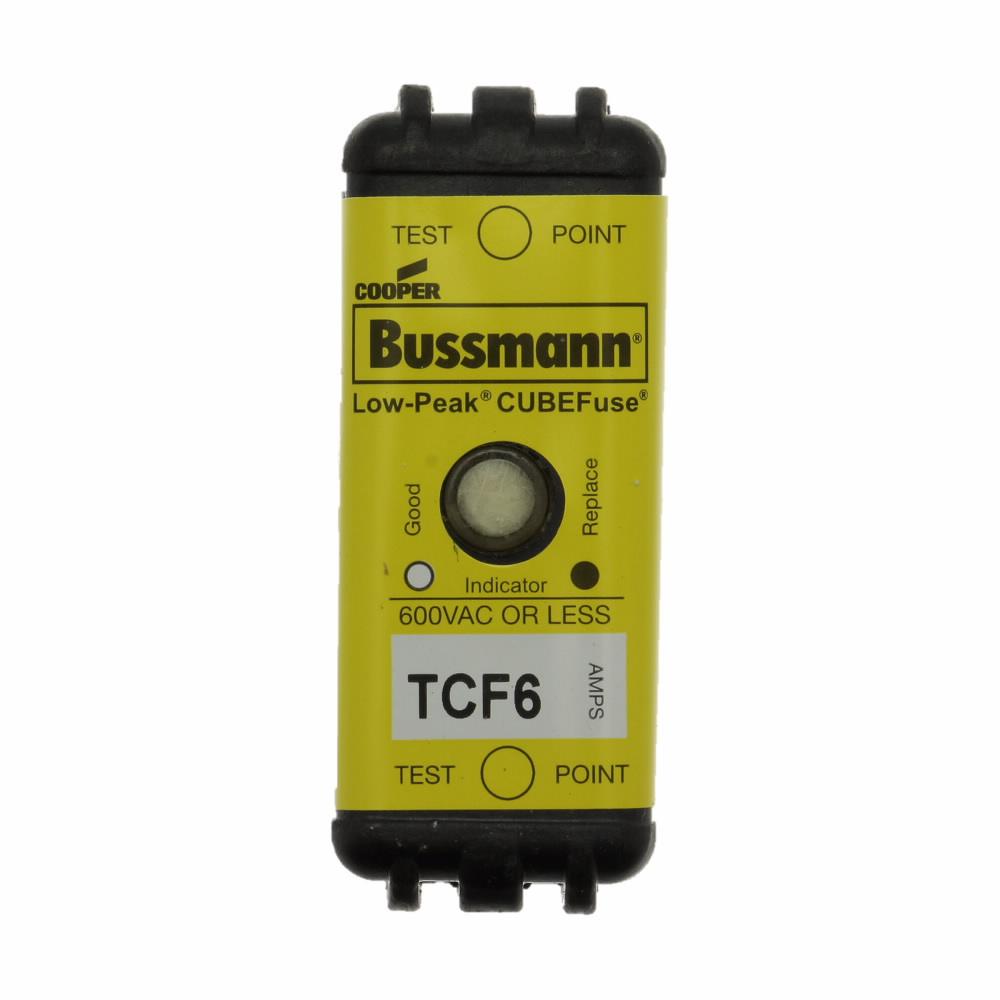

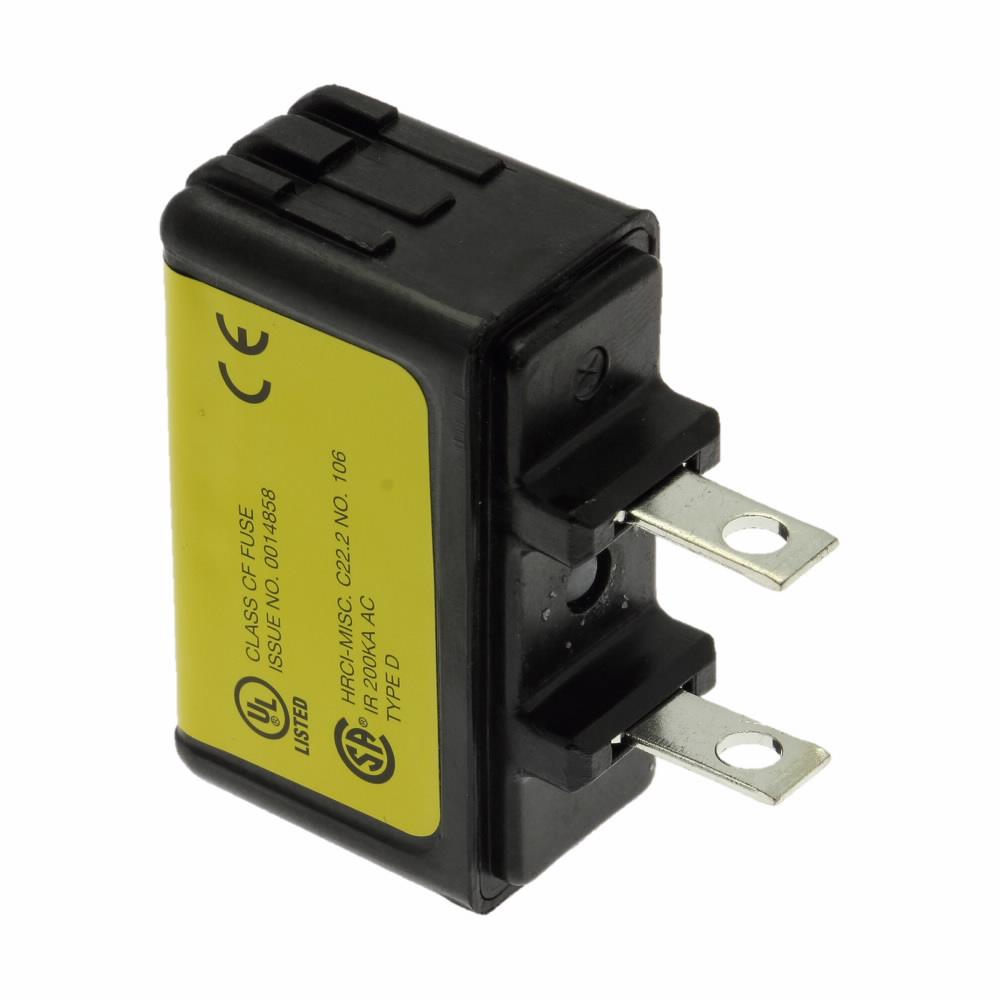

Bussmann TCF6 Fuse Assembly 6 Amp 600 VAC/300 VDC

Product Description

The Bussmann TCF6 is a time-delay fuse assembly with an amperage rating of six amps. This product is ideal for use in electrical panelboards, industrial control systems, and machinery disconnects. It is equipped with a finger-safe design and an indicating feature for ease of troubleshooting in electrical circuits.

• Time-delay functionality to manage temporary overloads.
• High interrupt rating of up to 300 kA for reliable safety.
• Size compatible with standard 35 mm DIN rail mounting.

Product Highlights

This fuse offers enhancements over traditional designs, ensuring both performance and safety in various applications.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Type: Time-delay Fuse
• Class: CF
• Voltage Rating: 600 VAC/300 VDC
• Amperage Rating: 6 A
• Body Size: 3.01 inches L x 1 inch H
• Material: Glass Filled Polyethersulfone
• Mounting Type: Chassis/DIN Rail
• Response Time: 10 seconds at 500%
• Interrupt Rating: 100/300 kA
