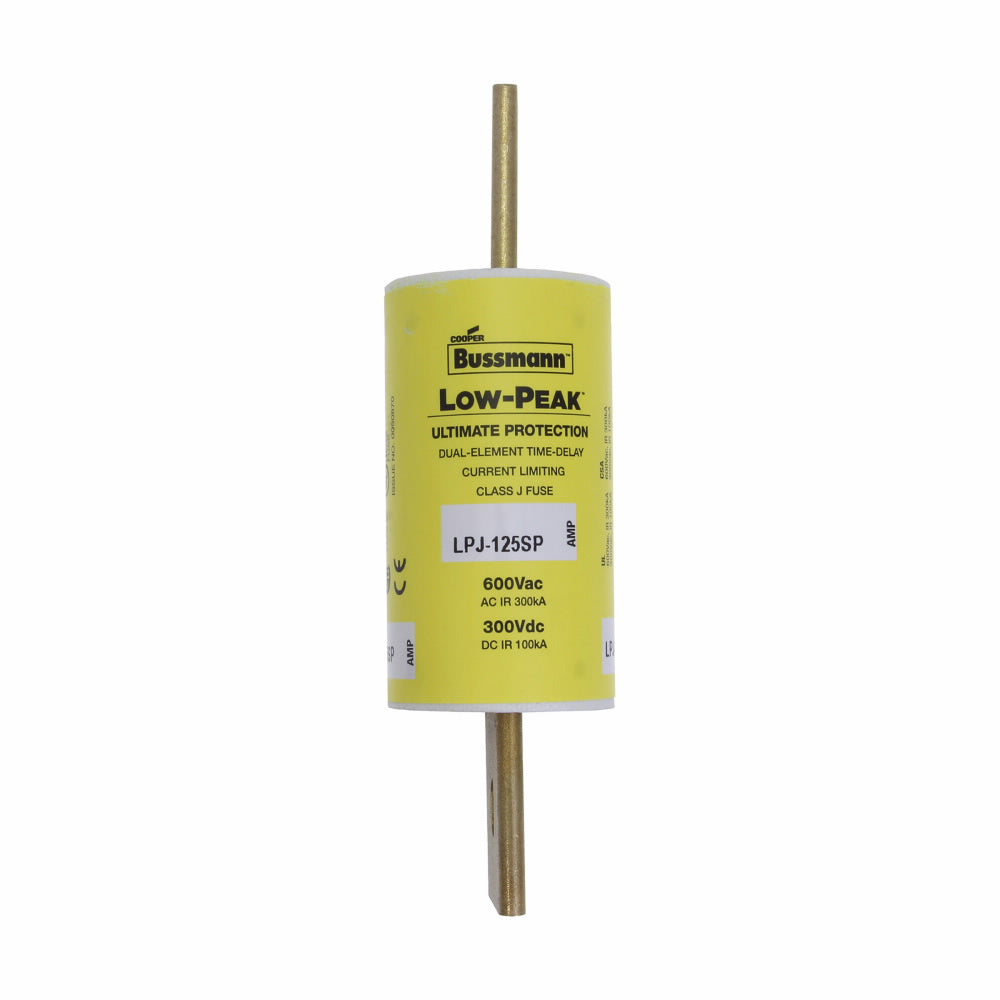

Bussmann LPJ-125SP 600V J TD FS Power Fuse

Product Description

The Bussmann LPJ-125SP is a Class J fuse with a voltage rating of six hundred volts. It has a time-delay function and offers dual-element current limiting. This fuse is rated for one hundred twenty-five amperes and features a non-indicating design. The interrupting capacity is three hundred kiloamperes at six hundred volts alternating current and one hundred kiloamperes at three hundred volts direct current.

• Time-delay, dual-element design for reliable performance.
• Interrupting rating: 300 kA at 600 Vac.
• Used in safety and security systems and industrial applications.

Product Highlights

The LPJ-125SP provides effective protection in various industrial settings and is well-suited for facilities' safety systems.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann

Technical Specifications

• Voltage Rating: 600 Vac; 300 Vdc
• Amperage Rating: 125 A
• Response Time: 10 sec at 500%
• Interrupt Rating: 300 kAIC at 600 Vac; 100 kAIC Vdc
• Size: 1.63 inches diameter x 5.75 inches length
• Connection: Bolted blade end x bolted blade end
• Family Group: Fuses/Accessories
• Special Features: Non-indicating; high in-rush current motor protection
