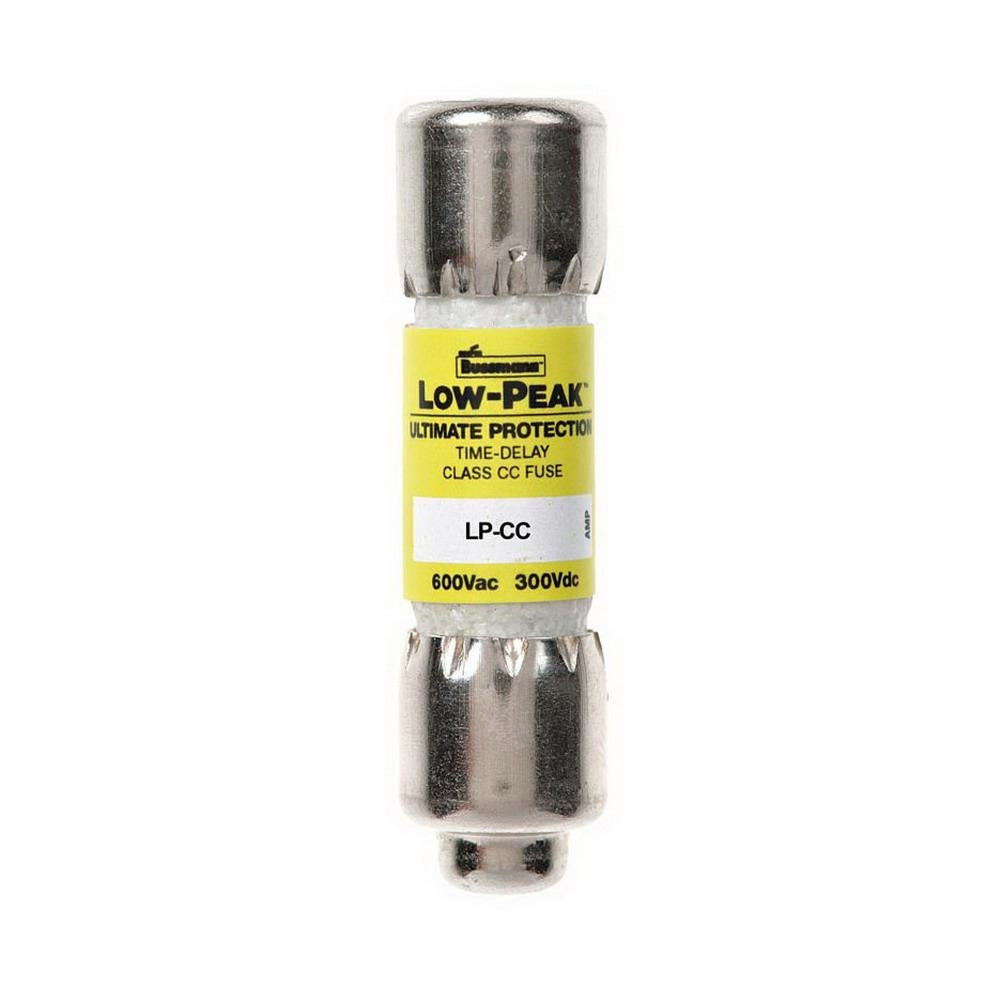

Bussmann LP-CC-5 Low-Peak 150/600V 5A Time Delay Fuse

Product Description

The Bussmann LP-CC-5 is a low-peak time delay fuse rated for 150 to 600 volts and 5 amps. This fuse is designed to protect sensitive equipment from damaging power surges and overloads. It features a dual-element design providing both time-delay and current-limiting characteristics, ideal for various industrial applications.

• Rated for 5 amps
• Dual-element, current-limiting design
• Interrupt rating of 200 kA at 600 volts

Product Highlights

This fuse offers reliable protection for branch and specialized circuits, industrial control, and street lighting.

Product Information

Standard Information

• Brand: Bussmann
• MPN: LP-CC-5

Technical Specifications

• Voltage Rating: 600 Vac; 150 Vdc
• Amperage Rating: 5 Amps
• Interrupt Rating: 200 kAIC at 600 Vac; 20 kAIC at 150 Vdc
• Size: 0.41 inches diameter x 1.5 inches length
• Body Style: Cylindrical
• Material: Melamine
• Type: Class CC Rejection, Current Limiting
• Standards: UL Listed, CSA Certified, CE Marked, RoHS Compliant
