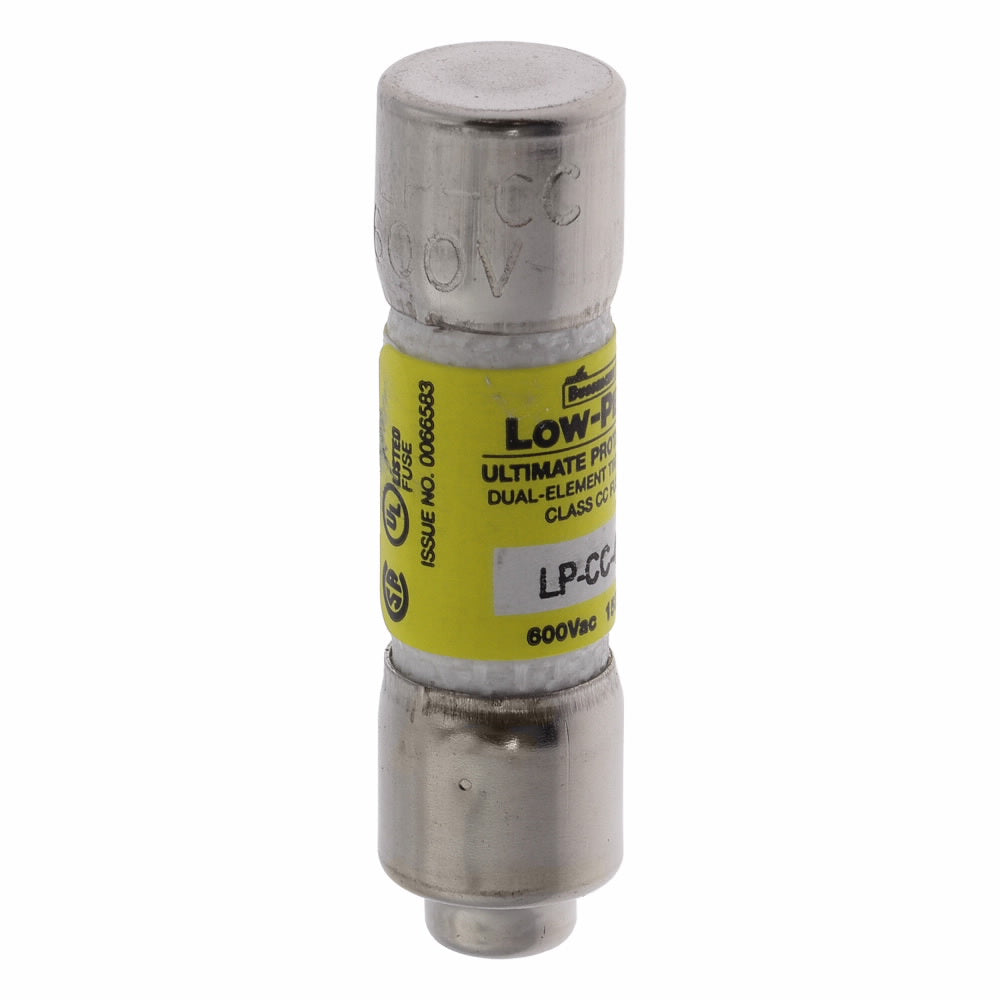

Bussmann LP-CC-4 LW-PEAK CC TD FS

Product Description

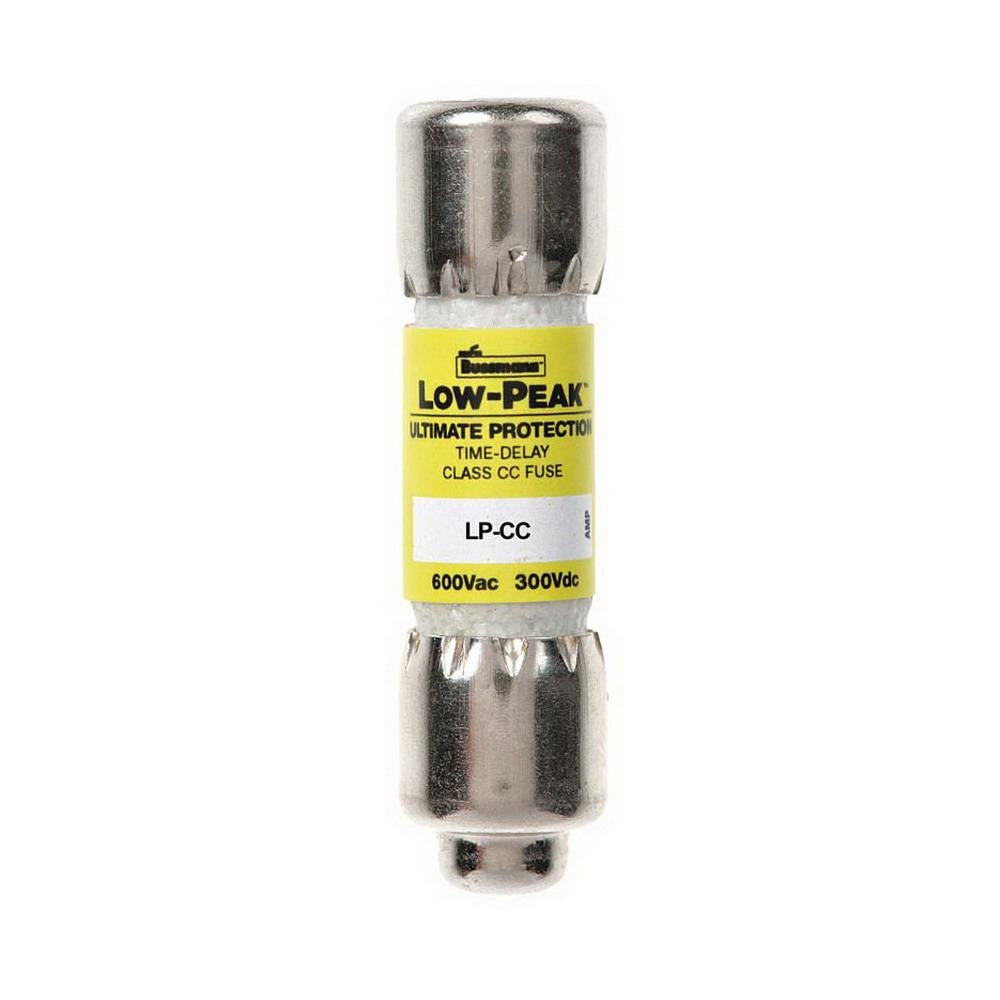

The Bussmann LP-CC-4 is a dual-element current-limiting fuse designed to provide reliable protection for electrical circuits. This Class CC fuse is rated at four amps and operates at both 600 volts AC and 150 volts DC. It features a rejection style design, which enhances safety by preventing incorrect fuse replacements.

• 4 Amp rating for effective current limitation
• Interrupt rating of 200 kA at 600 Vac and 20 kA at 150 Vdc
• Melamine tube construction for durability

Product Highlights

This fuse is ideal for branch circuits and is widely used in industrial control applications. Its time-delay characteristic prevents nuisance openings while ensuring protection against short-circuit conditions.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann

Technical Specifications

• Type: Fuse
• Amperage Rating: 4 Amp
• Voltage Rating: 600 Vac; 150 Vdc
• Interrupting Rating: 20 kAIC at 150 Vdc; 200 kAIC at 600 Vac
• Body Style: Cylindrical
• Connection: Ferrule end x ferrule end
• Dimensions: 1.500 inches x 0.410 inches x 0.410 inches
• Material: Melamine tube
