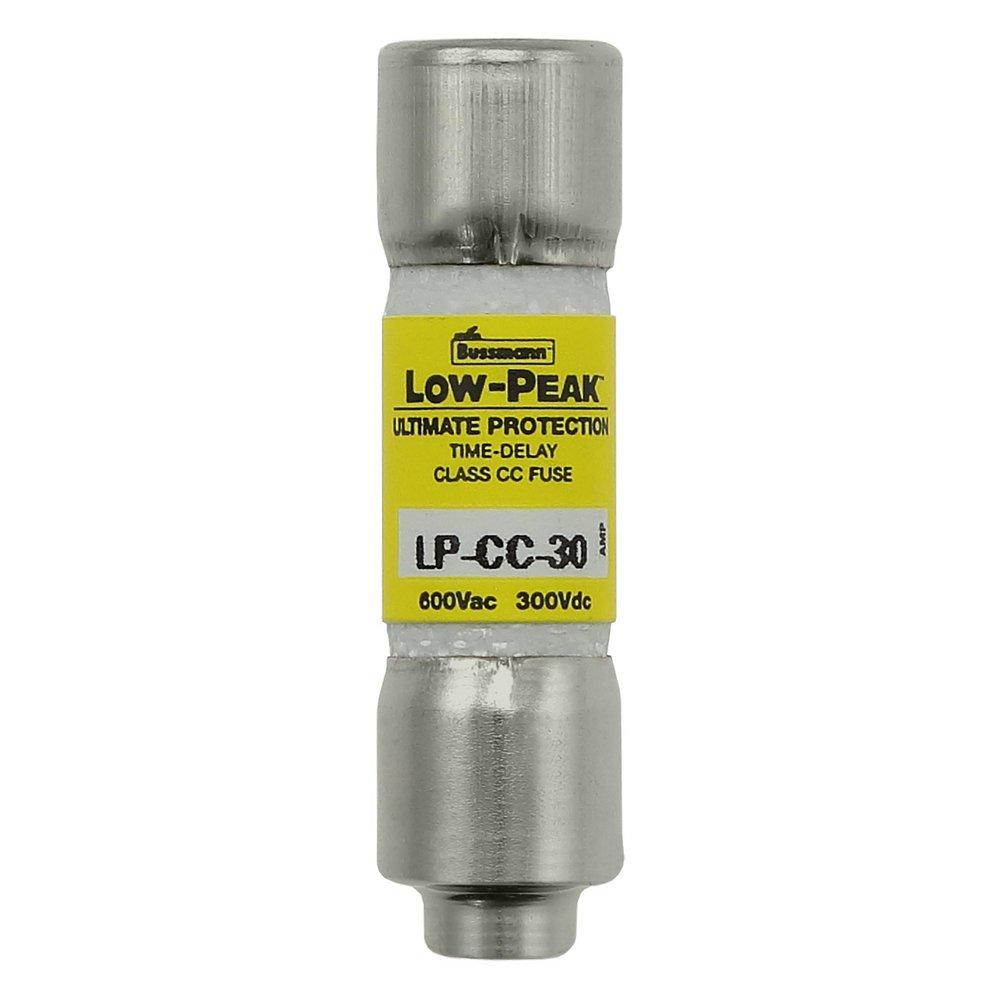

Bussmann LP-CC-30 Low-Peak Time Delay Fuse 30A 600 VAC/300 VDC
Bussmann LP-CC-30 Low-Peak Time Delay Fuse 30A 600 VAC/300 VDC

Bussmann LP-CC-30 Low-Peak Time Delay Fuse 30A 600 VAC/300 VDC

Brand: BUSSMANN
SKU: LP-CC-30
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm
$37.50
$37.50
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Bussmann LP-CC-30 is a low-peak time delay fuse designed for circuit protection. This fuse operates at thirty amps with a voltage rating of six hundred volts AC or three hundred volts DC.

  • Current limiting design enhances circuit safety.
  • 12 seconds response at 200% rated current.
  • Compact cylindrical body for space-saving installations.

Product Highlights

The LP-CC-30 provides reliable protection in electrical circuits, reducing the risk of equipment damage due to overloads.

Product Information

Standard Information

  • Brand: Bussmann
  • MPN: LP-CC-30

Technical Specifications

  • Voltage Rating: 600 VAC/300 VDC
  • Amperage Rating: 30 A
  • Interrupt Rating: 20/200 kA
  • Body Size: 13/32 in Dia x 1-1/2 in L
  • Response Time: 12 s at 200%
  • Terminal Type: Ferrule
  • Material: Melamine
  • Element Type: Dual
