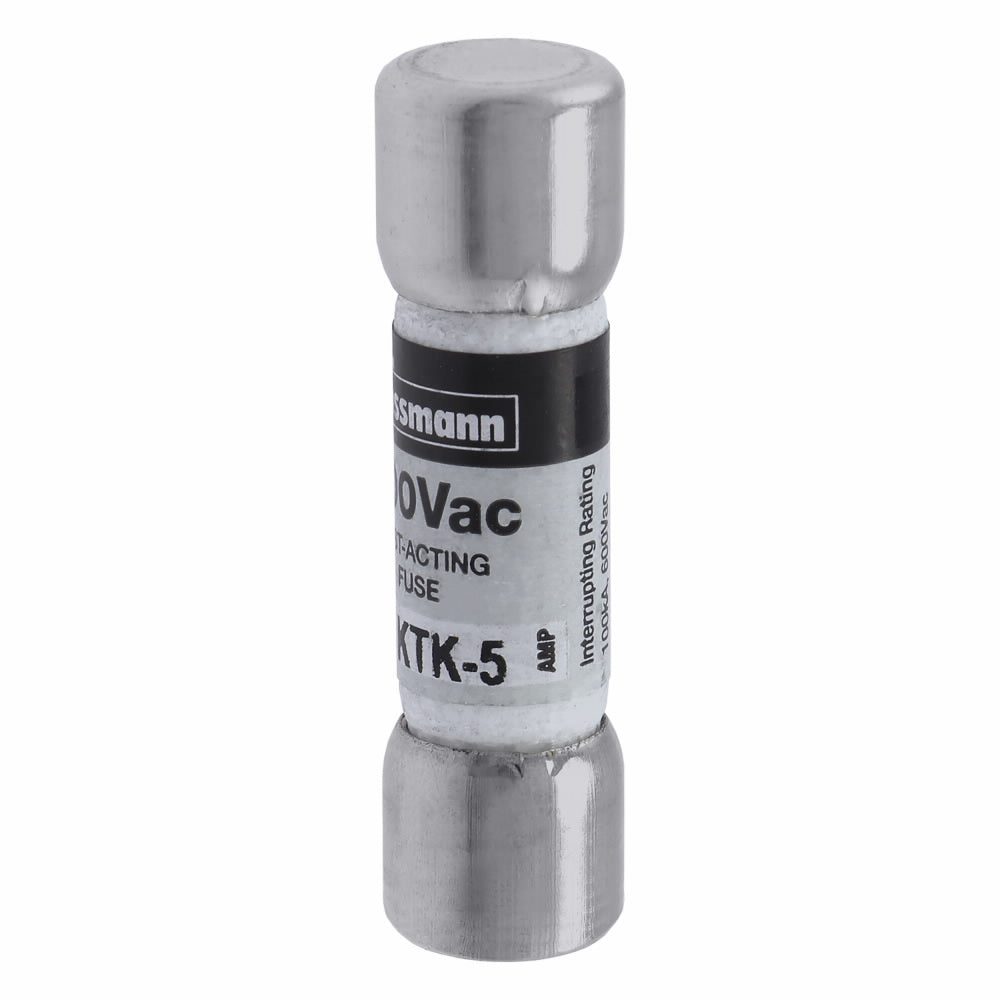

Bussmann KTK-5 600v 5amp LIMITRON Fast-Acting Supplemental Fuse Non-Indicating 100kAIC @ 600Vac

Product Description

The Bussmann KTK-5, with MPN KTK-5, is a fast-acting supplemental fuse designed for voltage applications up to six hundred volts and rated for five amps. This fuse is ideal for protecting control circuits, lighting circuits, and meter circuits. Its non-indicating design ensures quick operation during overload conditions, allowing for efficient circuit protection.

• Rated voltage: 600 volts
• Interrupt rating: 100 kAIC
• Size: 13/32 inches diameter by 1-1/2 inches length

Product Highlights

The Bussmann KTK-5 offers reliable circuit protection with a nickel-plated bronze endcap and a melamine tube. This fuse aligns with CE and CSA standards, ensuring safety and compliance in various applications.

Product Information

Standard Information

• Brand: Bussmann
• Class: Supplemental

Technical Specifications

• Voltage Rating: 600 Volt
• Amperage Rating: 5 Amp
• Diameter: 10.3 mm
• End Type: Ferrule
• Material: Nickel-plated bronze endcap, melamine tube
• Application: Control Circuits, Lighting Circuit Protection, Meter Circuits
• Interrupt Rating: 100 kAIC
• Dimensions: 0.41 inches x 0.41 inches x 1.5 inches
