Product Description

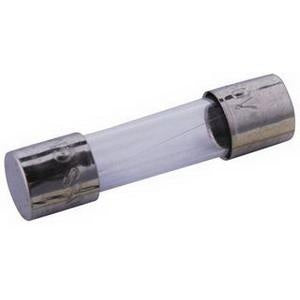

The Bussmann GMA-1-R is a fast acting fuse designed for electronic circuits. This fuse is rated for one amp and operates at 250 volts AC. It features a cylindrical glass tube body with nickel-plated brass endcaps, connecting via ferrule terminals. The compact size makes it suitable for various applications in power distribution.
- Fast acting design protects against electrical overloads
- Rated interrupt current of 35 amps at 250 volts AC
- Dimensions: five millimeters in diameter and twenty millimeters in length
Product Highlights
This fuse offers superior protection for safety and security systems in industrial settings.
Product Information
Standard Information
-
Manufacturer: Bussmann
-
Part Number: GMA-1-R
Technical Specifications
-
Type: Fast-acting fuse
-
Voltage Rating: 250 Vac
-
Amperage Rating: 1 A
-
Interrupt Rating: 35 A at 250 Vac
-
Material: Glass tube, nickel-plated brass endcaps
-
Response Time: 60 min at 135%; 2 min at 200%
-
Standards: UL Listed, CSA Certified, RoHS Compliant
-
Application: Safety and security systems in industrial facilities
