Bussmann FRS-R-3-1/2 FRS-R3-1/2 600V RK TD FS

Product Description

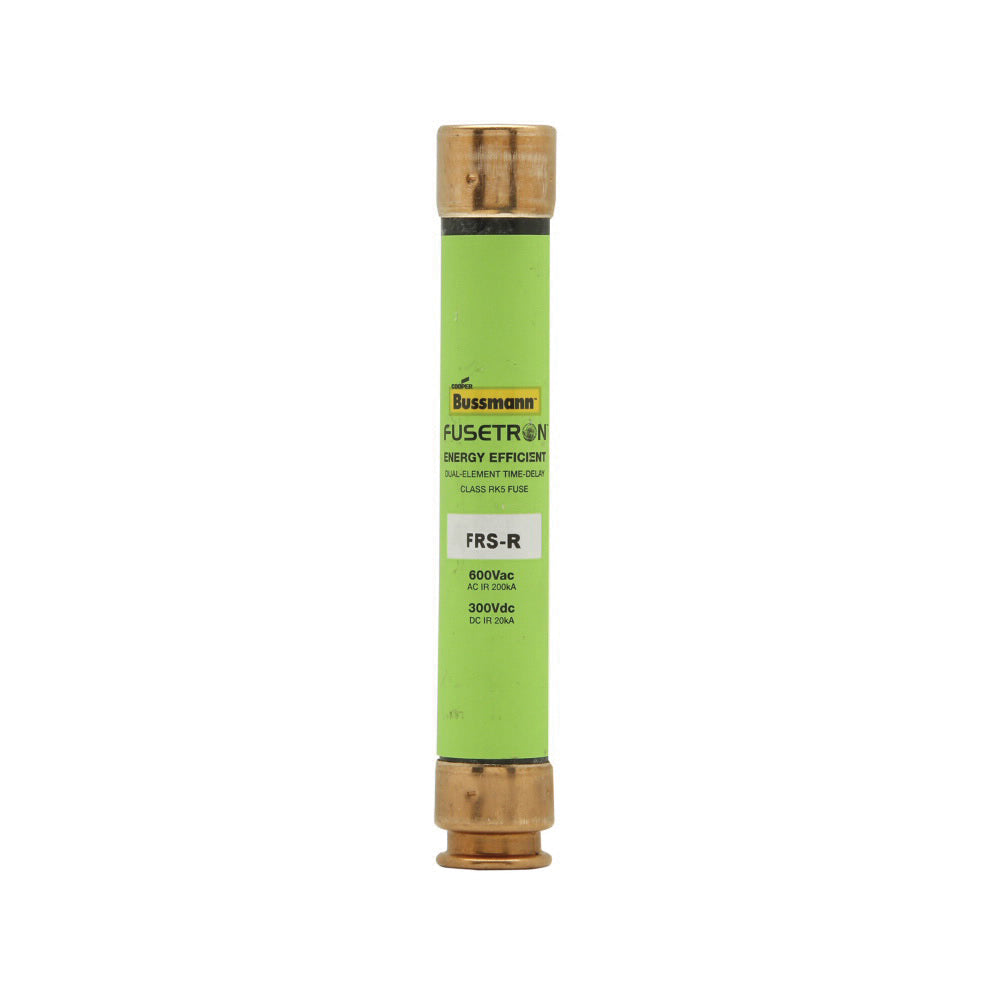

The Bussmann FRS-R-3-1/2 is a Class RK5 time-delay fuse designed for efficient circuit protection. This fuse is rated at 3.5 amperes and operates at voltages up to 600 Vac and 300 Vdc. It features a dual-element design which enables it to manage current surges effectively.

• Type: Current limiting fuse
• Interrupting rating: 200 kA at 600 Vac
• Dimensions: 0.81 inches in diameter and 5.00 inches in length

Product Highlights

This fuse is suitable for use in industrial facilities and security systems, providing essential protection for electrical circuits.

Product Information

Standard Information

• Manufacturer: Bussmann
• Category: Fuses/Accessories

Technical Specifications

• Amperage Rating: 3.5 A
• Voltage Rating: 600 Vac; 300 Vdc
• Interrupt Rating: 20 kAIC at 300 Vdc, 200 kAIC at 600 Vac
• Connection Type: Ferrule end x ferrule end
• Application: Industrial facilities - Safety and Security Systems
• Special Features: Renewable
• Response Time: 10 seconds at 500%
• Standard: CE Marked
